CABLE GLANDS & CONNECTORS

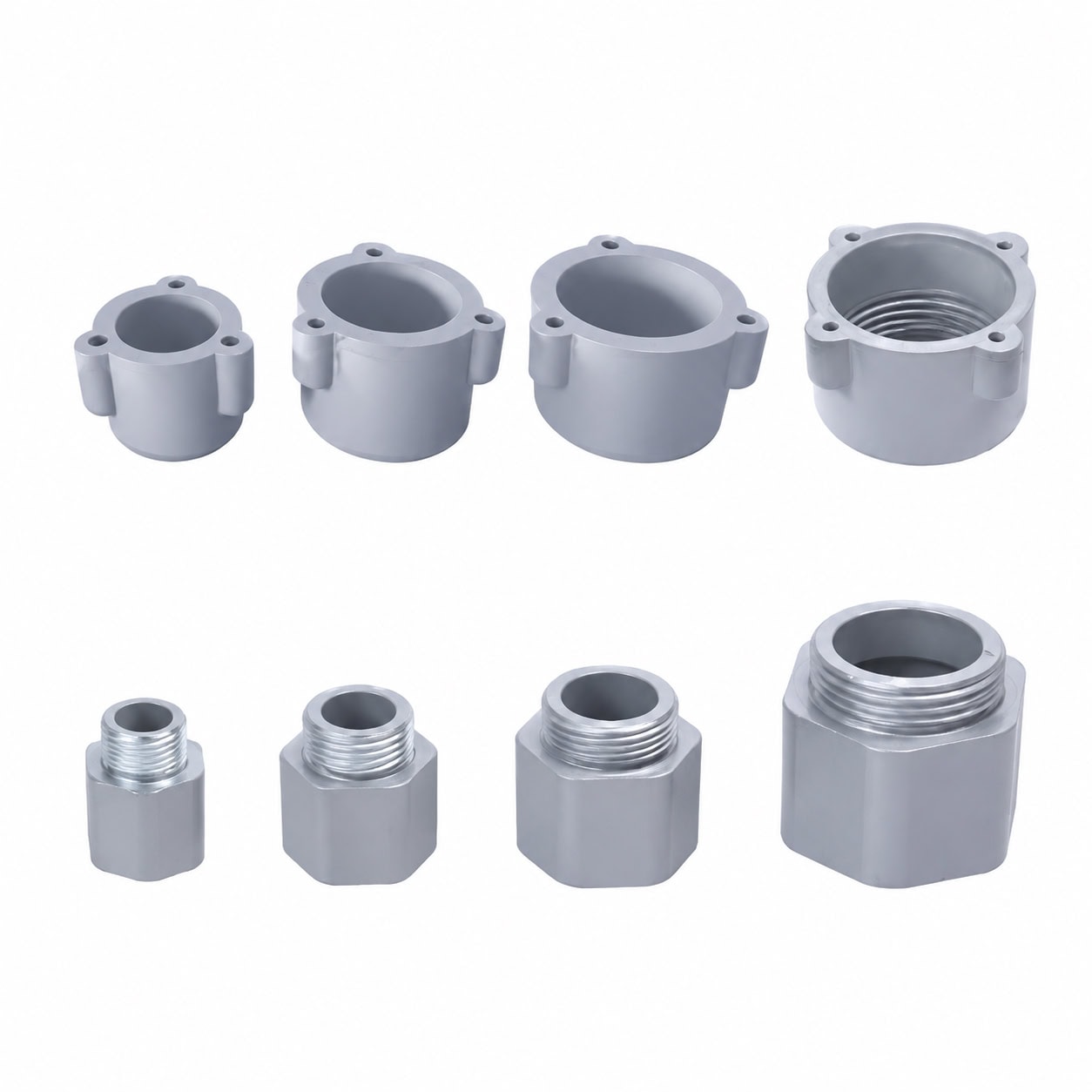

Explosion Proof Adaptor
Ex db IIC Gb
Ex eb IIC Gb
IP65 · WF1
The ExCtrl Explosion Proof Adaptor, also used as a conduit adaptor or thread adaptor, matches enclosure and conduit entries across G, Metric and NPT thread systems. Listed sizes cover DN15 to DN100 and cable diameters from 11 to 55 mm. Specify both end threads, protection method and required local approval.
- Ex db IIC Gb and Ex eb IIC Gb gas-protection configurations
- Ex ta IIIC Db dust-protection marking listed in the product data
- G, Metric and NPT thread families for DN15 to DN100 entries
- Listed cable diameter range: 11 to 55 mm
- IP65 ingress protection and WF1 anti-corrosion rating
- Confirm both end threads and required local approval before order
Technical Specifications
Match Both Adaptor Threads Before Ordering
Match both connection threads, DN and cable diameter. The protection marking must also fit the project specification and local approval.
| Parameter | Specification |
|---|---|
| Protection Type (Gas) | Ex db IIC Gb / Ex eb IIC Gb |
| Protection Type (Dust) | Ex ta IIIC Db |
| Ingress Protection | IP65 |
| Anti-Corrosion Rating | WF1 |
| Thread Standards | G / Metric / NPT |
| Cable Diameter Range | 11 to 55 mm |
| Conduit Size | DN15 to DN100 |
| Required Order Data | Both end threads, DN, cable diameter, protection method, local approval |
