BGJ Series Explosion Proof Conduit Connector
Ex db IIC Gb
Ex eb IIC Gb
IP66 · WF1
The BGJ Series Explosion Proof Conduit Connector makes a fixed threaded connection between conduit sections or equipment entries. Type A, B, C and D options cover female-female, female-male, male-male and reducing combinations across G, NPT and Metric threads from DN15 to DN100.
- Fixed connector for threaded conduit and equipment entries
- Ex db IIC Gb and Ex eb IIC Gb gas-protection configurations
- Ex tb IIIC Db dust-protection marking listed in the product data

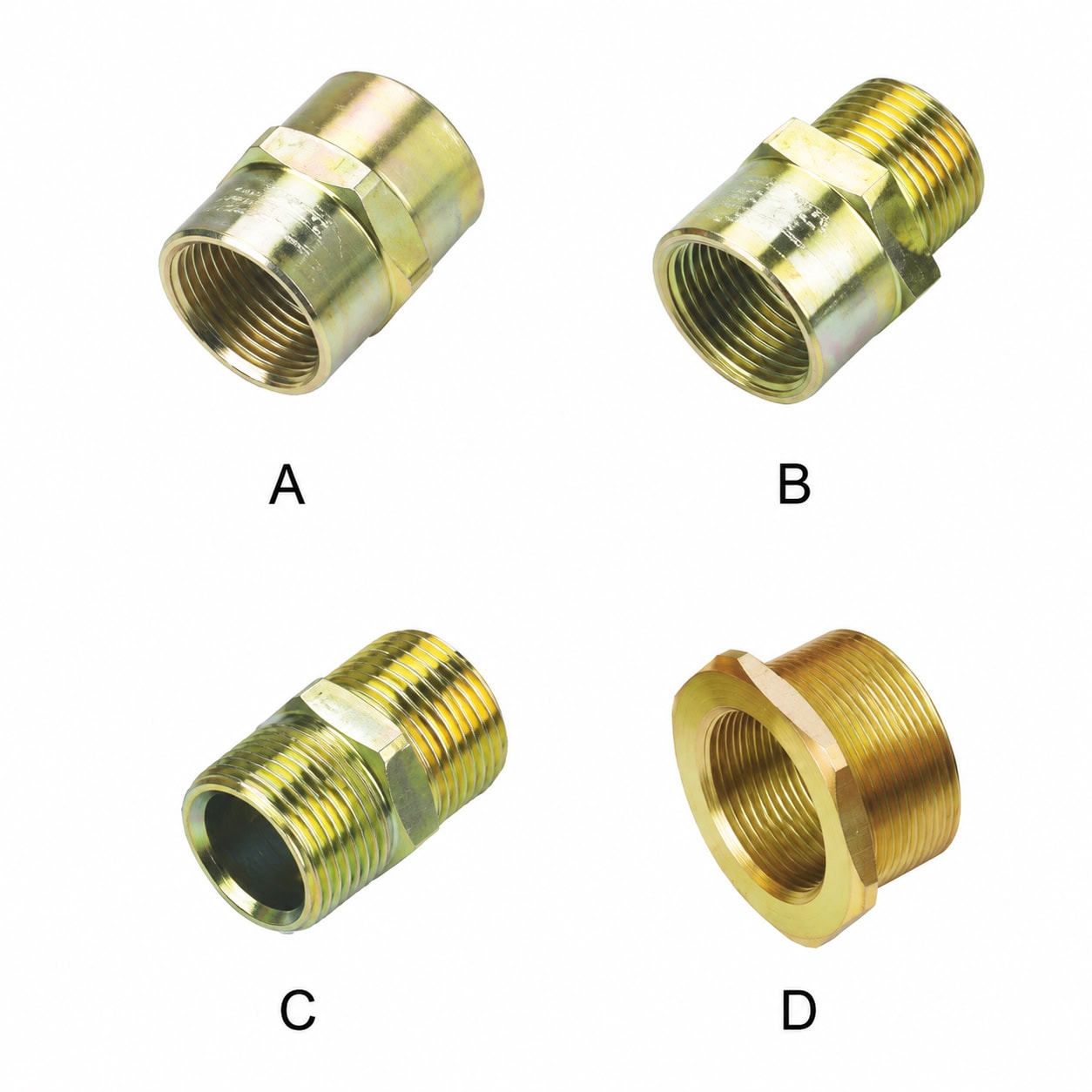

- Type A: female-female; Type B: female-male; Type C: male-male; Type D: reducing thread
- G1/2 to G4, NPT1/2 to 4 and M16 to M110×1.5 thread sizes
- Zinc-plated carbon steel or stainless steel; IP66 and WF1
Technical Specifications
Choose the Connector by Thread Combination and DN
A fixed connector still has two ends to match. Confirm both threads, material, DN, protection method and required local approval.
| Parameter | Specification |
|---|---|
| Series | BGJ |
| Protection Type (Gas) | Ex db IIC Gb / Ex eb IIC Gb |
| Protection Type (Dust) | Ex tb IIIC Db |
| Ingress Protection | IP66 |
| Anti-Corrosion Rating | WF1 |
| Body Material | Zinc-plated carbon steel / Stainless steel |
| End Configurations | Type A: female-female / Type B: female-male / Type C: male-male / Type D: reducing thread |
| Thread Sizes | G1/2 to G4 / NPT1/2 to 4 / M16 to M110×1.5 |
| Conduit Size | DN15 to DN100 |
| Required Order Data | Both end threads, DN, material, protection method, local approval |
