CABLE GLANDS & CONNECTORS

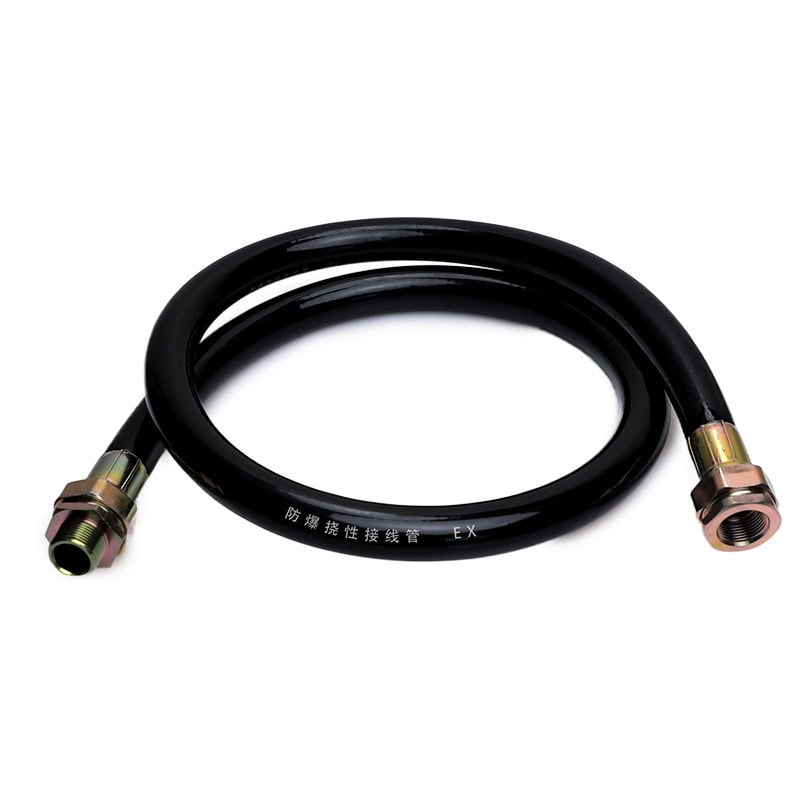

BNG Series Explosion Proof Flexible Conduit
Ex db IIB/IIC Gb
Ex tb IIIC Db
IP66 · WF1
The BNG Series Explosion Proof Flexible Conduit bridges equipment and rigid conduit where alignment or movement makes a fixed connection impractical. Choose Type A, B or C for female-female, female-male or male-male ends, then specify G, NPT or Metric threads from DN15 to DN100.
- Ex db IIB/IIC Gb gas-protection configuration
- Ex tb IIIC Db dust-protection marking listed in the product data
- Type A: female-female; Type B: female-male; Type C: male-male
- G1/2 to G4, NPT1/2 to 4 and M16 to M110×1.5 thread sizes
- Listed cable diameter range: 10 to 75 mm; conduit range: DN15 to DN100
- IP66 ingress protection and WF1 anti-corrosion rating
Technical Specifications
Choose the End Threads Before Ordering the Flexible Conduit
End configuration comes first. Then confirm each thread, conduit DN, cable diameter, required length and the local approval for the project.
| Parameter | Specification |
|---|---|
| Series | BNG |
| Protection Type (Gas) | Ex db IIB/IIC Gb |
| Protection Type (Dust) | Ex tb IIIC Db |
| Ingress Protection | IP66 |
| Anti-Corrosion Rating | WF1 |
| End Configurations | Type A: female-female / Type B: female-male / Type C: male-male |
| Thread Sizes | G1/2 to G4 / NPT1/2 to 4 / M16 to M110×1.5 |
| Cable Diameter Range | 10 to 75 mm |
| Conduit Size | DN15 to DN100 |
| Required Order Data | End configuration, both threads, DN, cable diameter, length, local approval |
