CABLE GLANDS & CONNECTORS

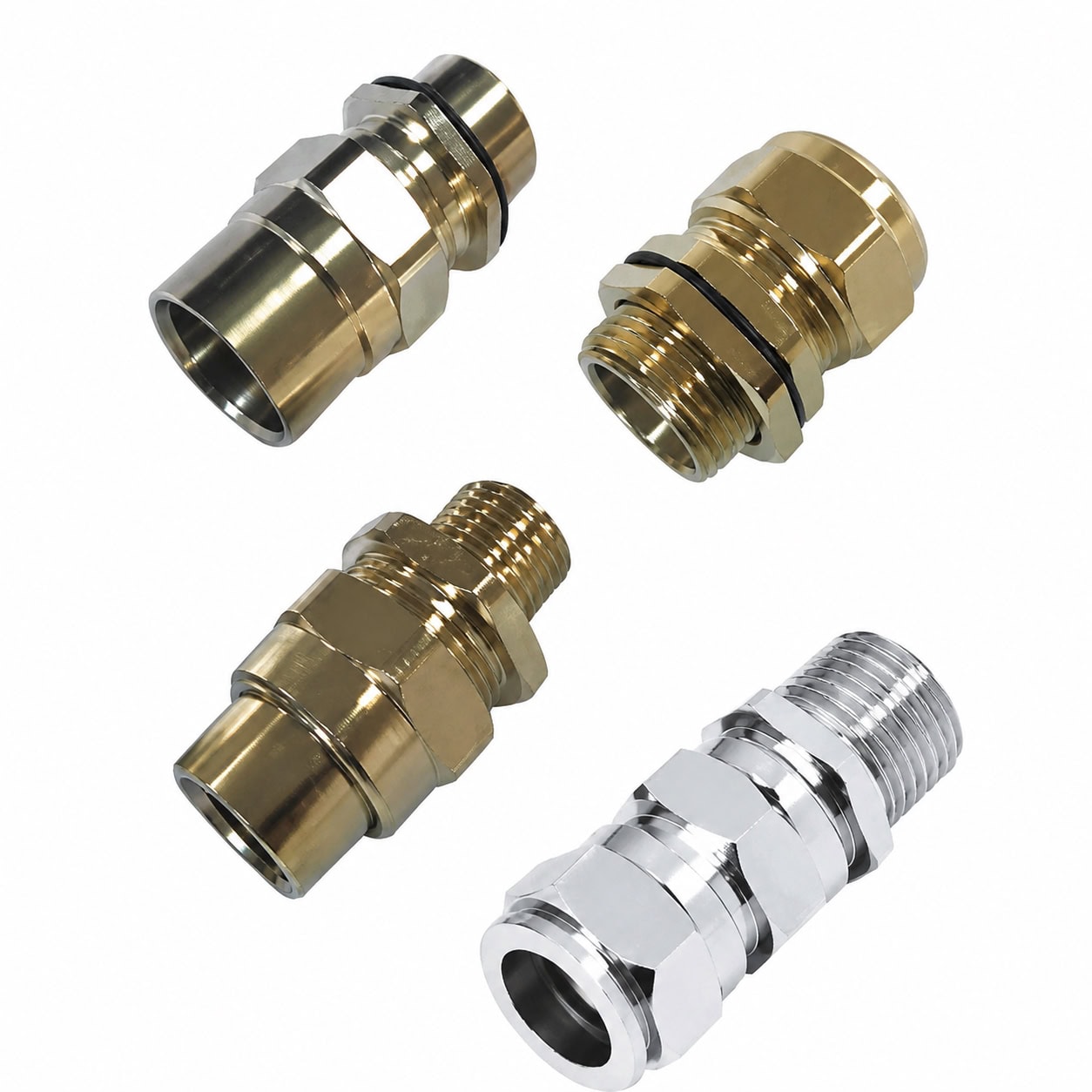

BQD Series Explosion Proof Cable Gland
Ex db eb IIC Gb
Ex tb IIIC Db
IP66 · WF2
The BQD Series Explosion Proof Cable Gland clamps armoured cable at an Ex equipment entry. Its listed range covers G1/2 to G4, NPT1/2 to 4 and M16 to M115×1.5 threads with IP66 and WF2 protection. Specify the cable construction and actual outside diameters before selecting the gland.
- Explosion proof cable gland for clamping and securing armoured cable
- Ex db eb IIC Gb gas-protection marking
- Ex tb IIIC Db dust-protection marking listed in the product data
- G1/2 to G4, NPT1/2 to 4 and M16 to M115×1.5 thread sizes
- IP66 ingress protection and WF2 anti-corrosion rating
- Confirm armour type, cable diameters, entry thread and required local approval
Technical Specifications
Match the Cable Gland to Armour, Thread and Entry Size
Armour construction and actual cable dimensions determine gland size. Confirm those values with the entry thread and required local approval.
| Parameter | Specification |
|---|---|
| Series | BQD |
| Protection Type (Gas) | Ex db eb IIC Gb |
| Protection Type (Dust) | Ex tb IIIC Db |
| Ingress Protection | IP66 |
| Anti-Corrosion Rating | WF2 |
| Cable Type | Armoured cable |
| Thread Sizes | G1/2 to G4 / NPT1/2 to 4 / M16 to M115×1.5 |
| Required Order Data | Armour type, cable diameters, entry thread, local approval |
