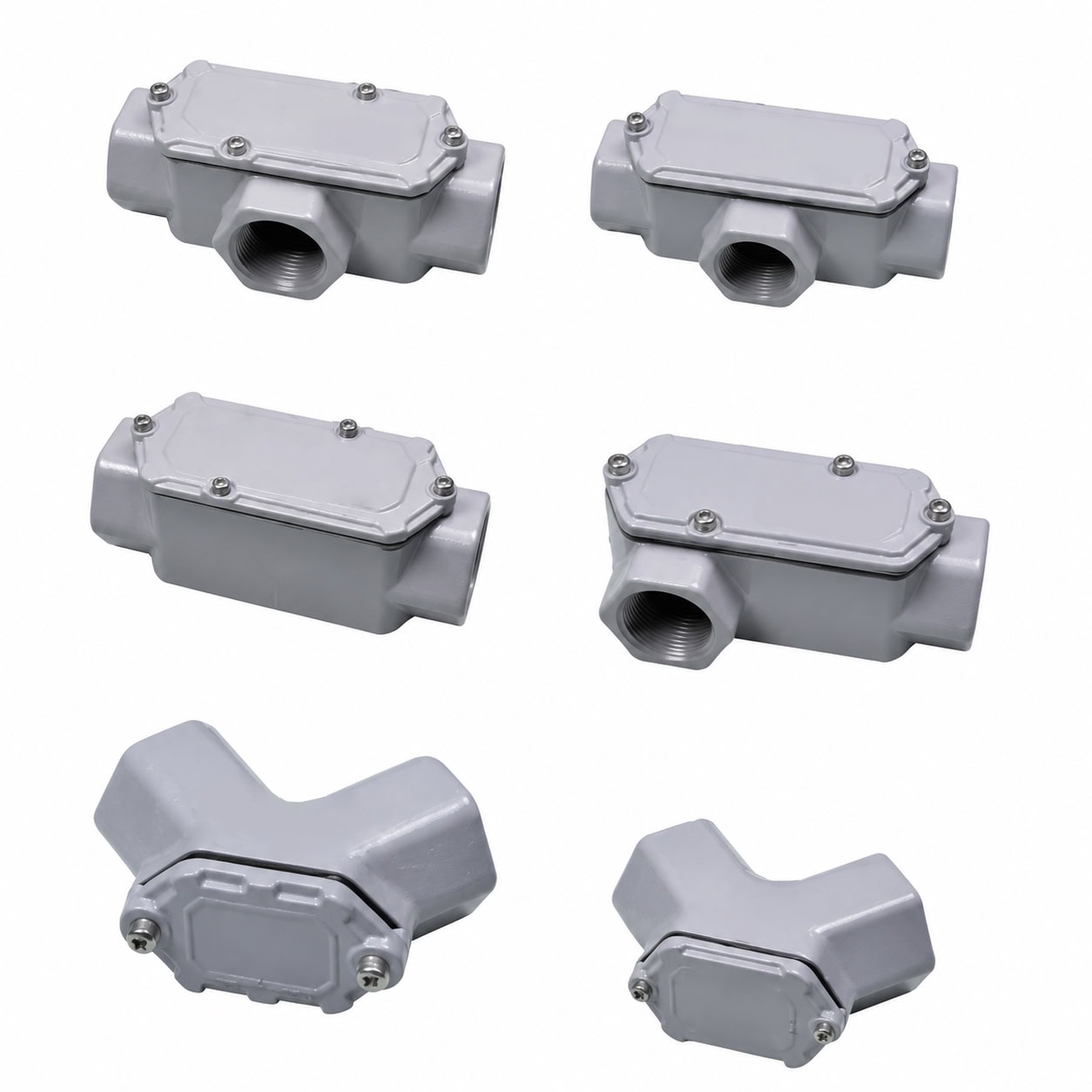

BHC Series Explosion Proof Conduit Pull Box
Ex eb IIC T6 Gb
Ex tb IIIC T80°C Db
The BHC Series Explosion Proof Conduit Pull Box gives installers a place to pull and inspect conductors where a conduit run changes direction or needs access. Choose the body form, thread arrangement and DN size together so the box fits the route rather than forcing the route around the box.
- Ex eb IIC T6 Gb gas-protection marking and Ex tb IIIC T80°C Db dust-protection marking
- Eight body forms, A through H, for straight, elbow, tee and cross conduit layouts
- G1/2 to G4, NPT1/2 to 4 and M20 to M110×1.5 thread ranges
- DN15 to DN100 conduit size range
- IP65 ingress protection and WF1 anti-corrosion rating
- Used for conduit connections, cable pulling and route changes; confirm local approval before order
Technical Specifications
Choose the BHC Pull Box by Route, Thread and DN Size
Match the body form to the conduit route, then confirm the thread standard, DN size and local approval required for the installation.
| Parameter | Specification |
|---|---|
| Protection Marking (Gas) | Ex eb IIC T6 Gb |
| Protection Marking (Dust) | Ex tb IIIC T80°C Db |
| Structure Forms | A / B / C / D / E / F / G / H |
| Conduit Size | DN15 to DN100 |
| Thread Range | G1/2 to G4 / NPT1/2 to 4 / M20 to M110×1.5 |
| Ingress Protection | IP65 |
| Anti-Corrosion Rating | WF1 |
| Application | Conduit connection and bending for wires and cables |
