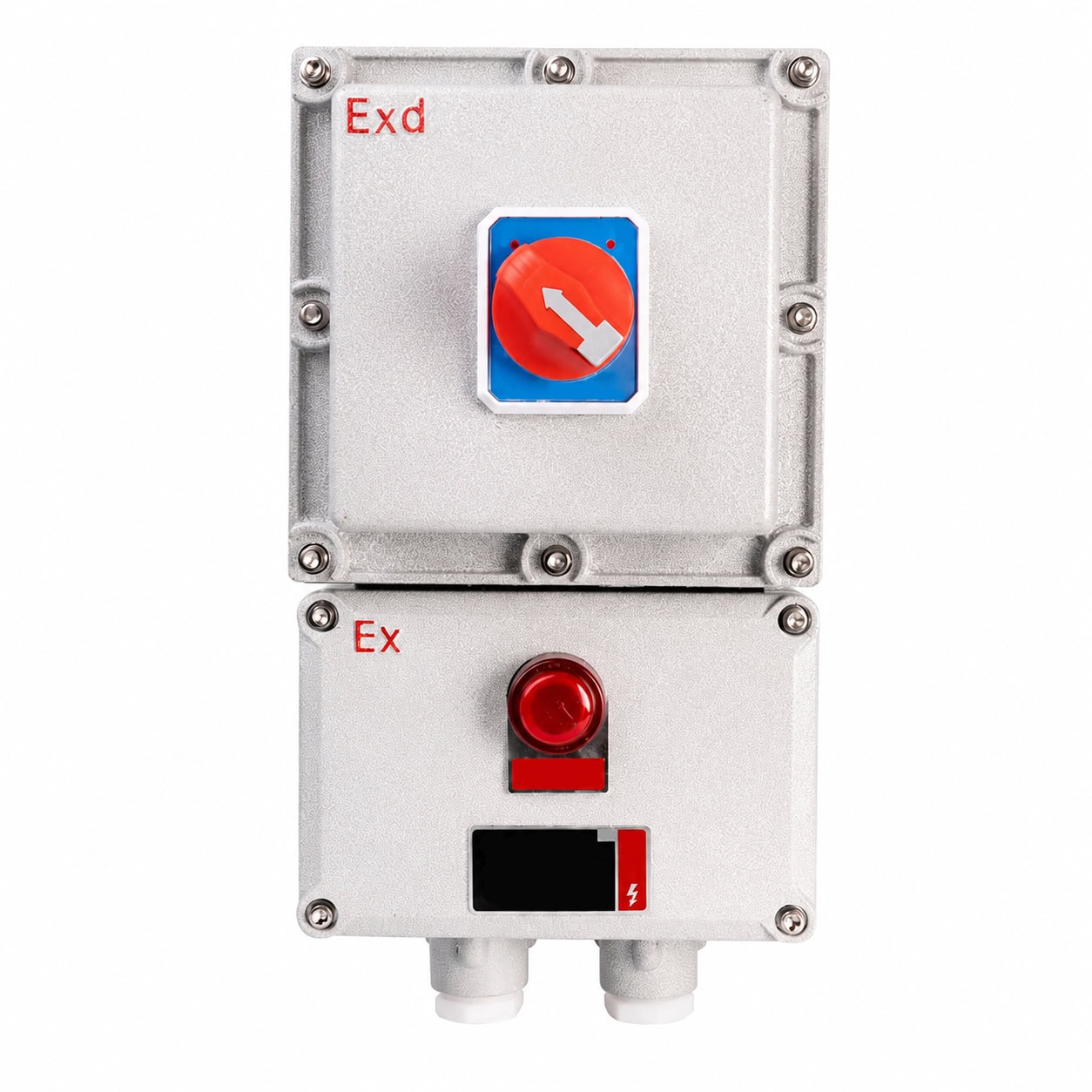

BXQ Series Explosion Proof Circuit Breaker
Ex d ⅡB/ⅡC T6 Gb
The BXQ explosion proof circuit breaker covers AC220V/380V configurations with rated current up to 60A. Product data records IIB/IIC gas variants, matching dust markings, IP66, WF1, G1/2-G3 entries and 9-25 mm cable sizes. Send the protected circuit data and required local approval so ExCtrl can confirm the breaker configuration before quotation.
- BXQ circuit breaker model for AC220V/380V circuits
- Rated current up to 60A
- Gas marking: Ex db eb IIB/IIC T4/T6 Gb
- Dust marking: Ex tb IIIC T130°C/T80°C Db
- IP66 ingress protection and WF1 corrosion rating
- G1/2-G3 cable entries for 9-25 mm cable diameters
Configuration Data
Specify the BXQ Circuit Breaker by Current and Cable Entry
The 60A product limit is only the first check. Confirm the protected circuit, protection marking and required local approval before order.
| Parameter | Specification |
|---|---|
| Model / Series | BXQ |
| Rated Voltage | AC 220V / 380V · 50Hz |
| Rated Current | ≤ 60A |
| Gas Protection Marking | Ex db eb IIB/IIC T4/T6 Gb |
| Dust Protection Marking | Ex tb IIIC T130°C/T80°C Db |
| Ingress Protection | IP66 |
| Corrosion Rating | WF1 |
| Cable Entry | G1/2-G3 |
| Cable Diameter | 9-25 mm |
