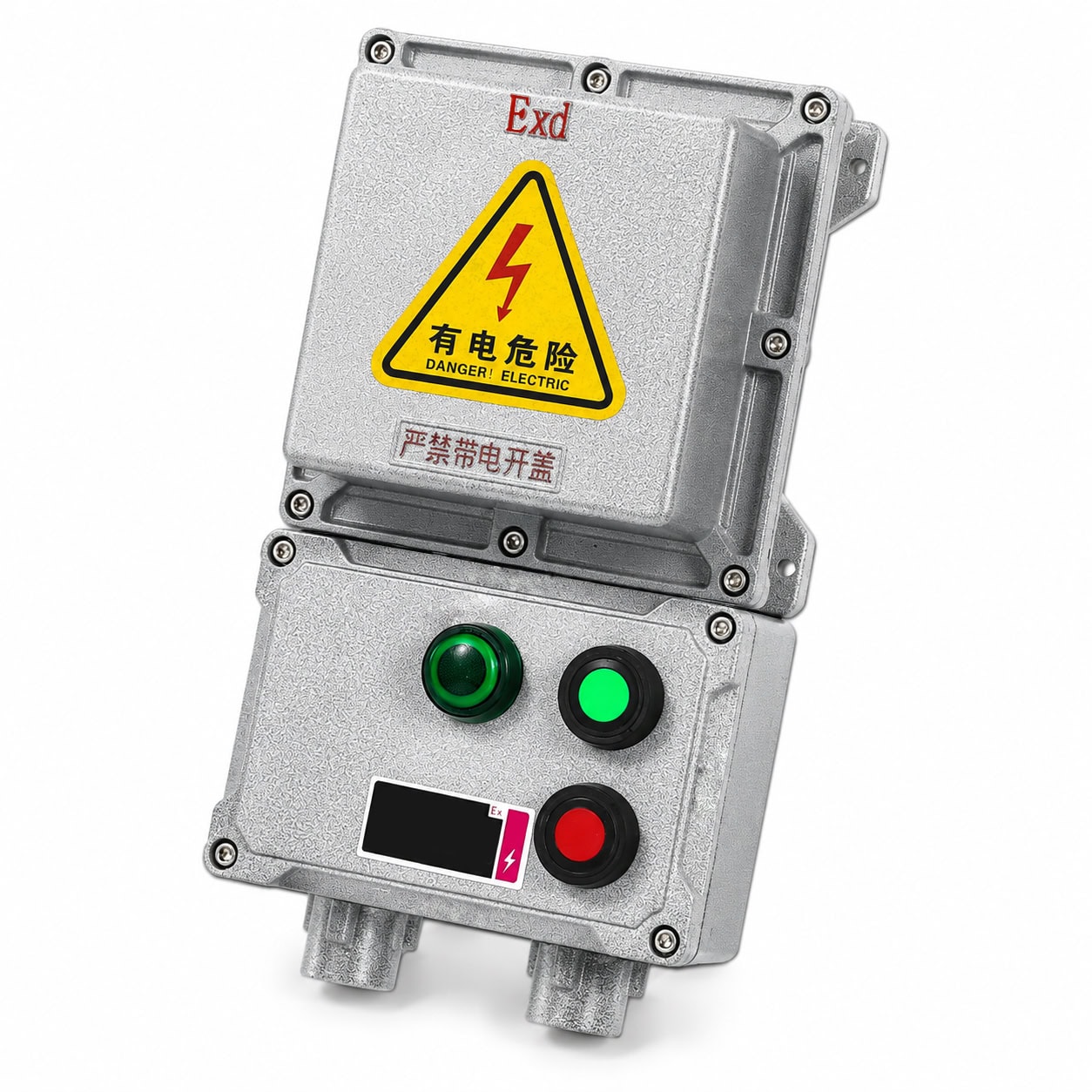

BXQ Series Explosion Proof Magnetic Starter
Ex db eb ⅡB/ⅡC T4/T6 Gb
Ex tb ⅢC T130°C/T80°C Db
The BXQ explosion proof magnetic starter covers AC220V/380V configurations from 12A to 95A. Product data records IIB/IIC gas variants, matching dust markings, IP66, WF1, G1/2-G3 entries and 6-55 mm cable sizes. Send the motor circuit data and required local approval; ExCtrl will return the model code for review.
- BXQ model for AC220V/380V circuits
- Rated current range: 12-95A
- Gas marking: Ex db eb IIB/IIC T4/T6 Gb
- Dust marking: Ex tb IIIC T130°C/T80°C Db
- IP66 ingress protection and WF1 corrosion rating
- G1/2-G3 cable entries for 6-55 mm cable diameters
Configuration Data
Specify the BXQ Magnetic Starter by Current and Cable Entry
Match the starter current and cable entry to the motor circuit. Confirm the required protection marking and local approval before order.
| Parameter | Specification |
|---|---|
| Model / Series | BXQ |
| Rated Voltage | AC 220V / 380V · 50Hz |
| Rated Current | 12A ~ 95A |
| Gas Protection Marking | Ex db eb IIB/IIC T4/T6 Gb |
| Dust Protection Marking | Ex tb IIIC T130°C/T80°C Db |
| Ingress Protection | IP66 |
| Corrosion Rating | WF1 |
| Cable Entry | G1/2-G3 |
| Cable Diameter | 6-55 mm |
