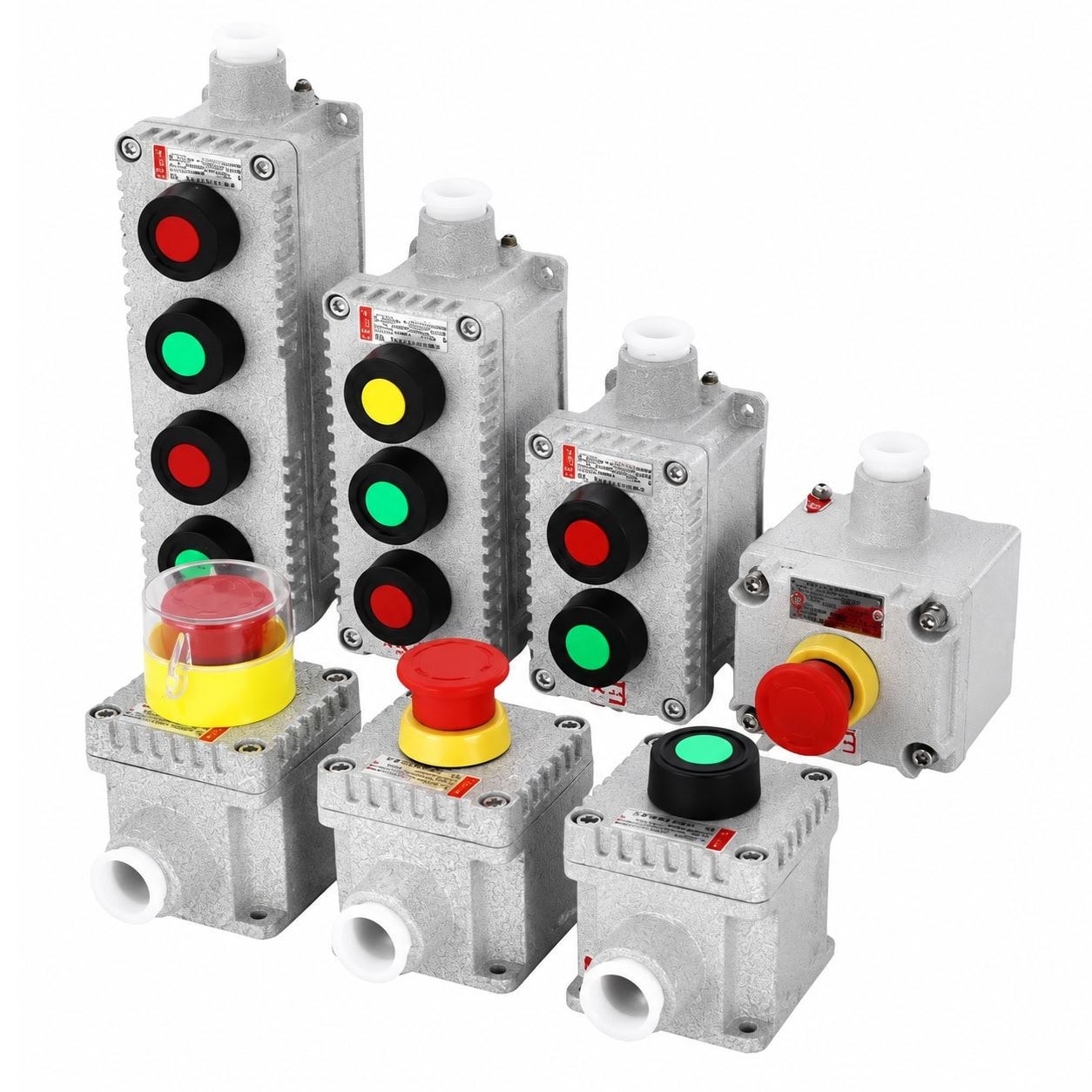

BZA53 Series Explosion Proof Pushbutton Station
Ex db eb IIC T6 Gb
The BZA53 explosion proof pushbutton station is rated 16A for AC220V/380V circuits. Product data records an IIC gas marking, a dust marking, IP66, WF1, a G3/4 cable entry and a 9-10 mm cable range. Send the operator arrangement and required local approval so ExCtrl can confirm the configuration before quotation.
- BZA53 model for AC220V/380V circuits
- Rated current: 16A
- Gas marking: Ex db eb IIC T6 Gb
- Dust marking: Ex tb IIIC T80°C Dc
- IP66 ingress protection and WF1 corrosion rating
- G3/4 cable entry for 9-10 mm cable diameters
Configuration Data
Specify the BZA53 Pushbutton Station by Current and Cable Entry
Confirm the operator arrangement, circuit voltage, protection marking and required local approval before order.
| Parameter | Specification |
|---|---|
| Model / Series | BZA53 |
| Rated Voltage | AC 220V / 380V · 50Hz |
| Rated Current | 16A |
| Gas Protection Marking | Ex db eb IIC T6 Gb |
| Dust Protection Marking | Ex tb IIIC T80°C Dc |
| Ingress Protection | IP66 |
| Corrosion Rating | WF1 |
| Cable Entry | G3/4 |
| Cable Diameter | 9-10 mm |
