CONTROL STATIONS, SWITCHES & STARTERS

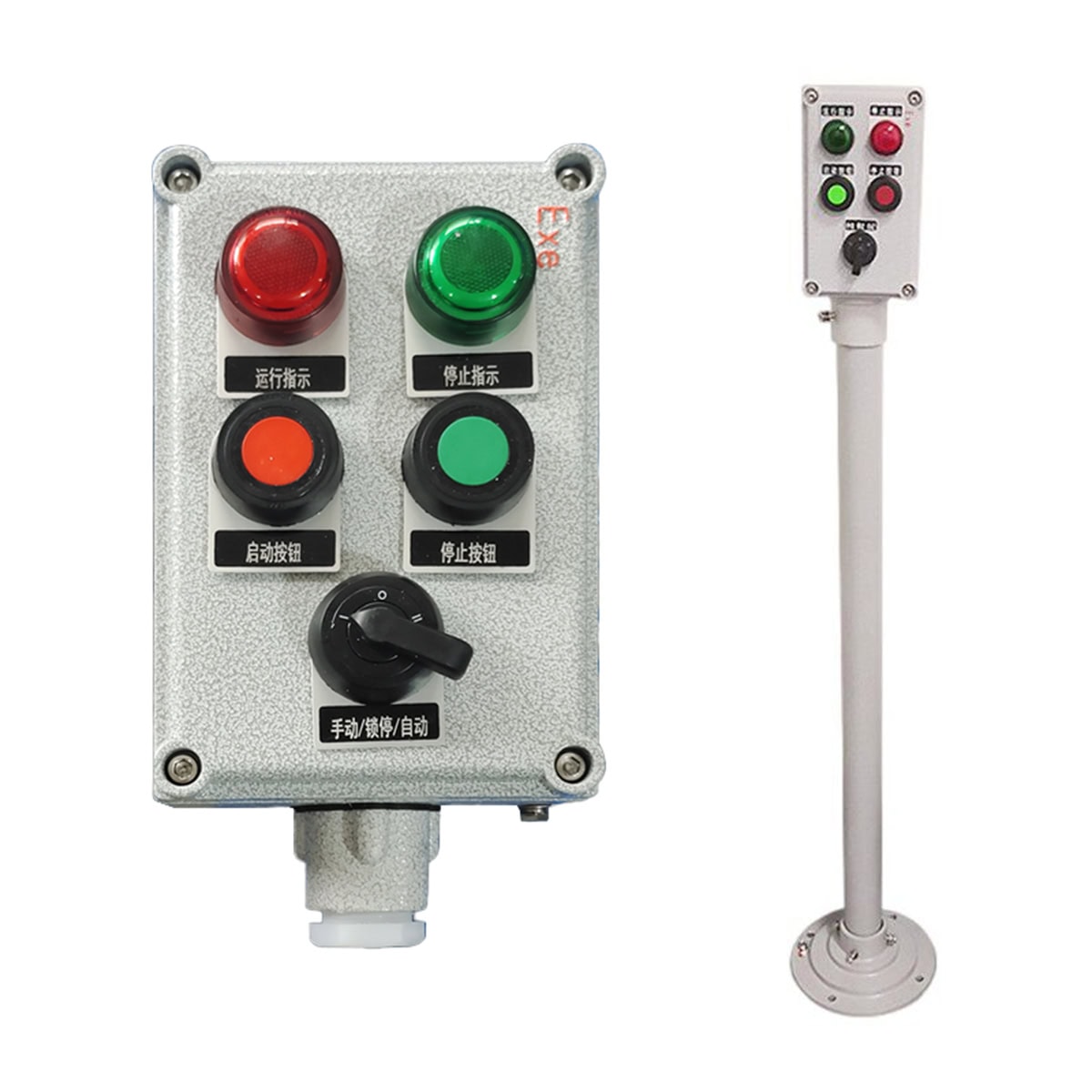

BZC51 Series Explosion Proof Control Station
Ex db eb ⅡB T6 Gb
Ex tb ⅢC T80°C Db
The BZC51 explosion proof control station is available in IIB and IIC variants for AC220V/380V circuits up to 10A. Product data records IP66 ingress protection, a WF1 corrosion rating, a G1 cable entry and a 9-38 mm cable range. Send the required protection marking and local approval with your RFQ so ExCtrl can confirm the model before quotation.
- BZC51 IIB and IIC model variants for AC220V/380V circuits
- Rated current up to 10A
- Gas marking: Ex db eb IIB T6 Gb or Ex db eb IIC T6 Gb
- Dust marking: Ex tb IIIC T80°C Db
- IP66 ingress protection and WF1 corrosion rating
- G1 cable entry for 9-38 mm cable diameters
Configuration Data
Specify the BZC51 Control Station by Gas Group and Cable Entry
Choose the IIB or IIC model around the protection marking required by your project. Certification and local approval are confirmed separately before order.
| Parameter | Specification |
|---|---|
| Model / Series | BZC51 IIB / BZC51 IIC |
| Rated Voltage | AC 220V / 380V · 50Hz |
| Rated Current | ≤ 10A |
| Gas Protection Marking | Ex db eb IIB T6 Gb / Ex db eb IIC T6 Gb |
| Dust Protection Marking | Ex tb IIIC T80°C Db |
| Ingress Protection | IP66 |
| Corrosion Rating | WF1 |
| Cable Entry | G1 |
| Cable Diameter | 9-38 mm |
