EXPLOSION PROOF ANTI-CORROSION

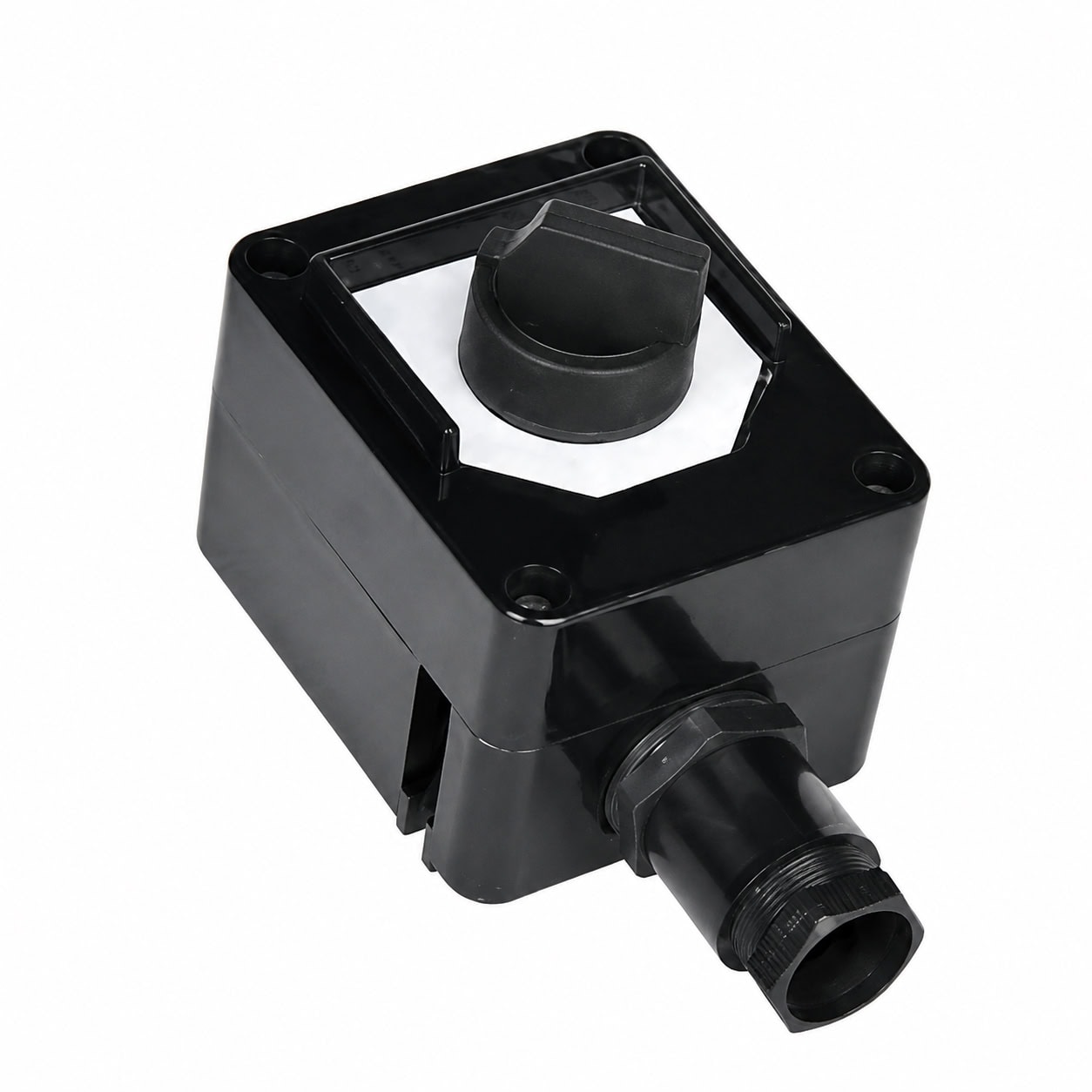

BK8050 Series Explosion Proof Anti-Corrosion Rotary Switch
Ex db eb IIC T6 Gb
Ex tb IIIC T80°C Db
IP66 · WF2
BK8050 is the Explosion Proof Anti-Corrosion Rotary Switch for AC 220V or 380V systems. The recorded configuration is rated at 16A, with a G3/4 entry for 9-14 mm cables. Confirm the switching arrangement before you request a drawing.
- Rated voltage: AC 220V / 380V; rated current: 16A
- Explosion protection marking: Ex db eb IIC T6 Gb and Ex tb IIIC T80°C Db
- Ingress protection IP66 with anti-corrosion rating WF2
- G3/4 cable entry thread for 9-14 mm cable diameters
- Confirm the switching arrangement and cable entry with your enquiry.
Technical Specifications
The numbers that decide the BK8050 switch fit
Use this matrix to align the rotary switch with voltage, current, protection marking and cable entry.
| Parameter | Specification |
|---|---|
| Protection Marking (Gas) | Ex db eb IIC T6 Gb |
| Protection Marking (Dust) | Ex tb IIIC T80°C Db |
| Rated Voltage | AC 220V / 380V |
| Rated Current | 16A |
| Ingress Protection | IP66 |
| Corrosion Grade | WF2 |
| Cable Entry Thread | G3/4 |
| Applicable Cable Diameter | 9-14 mm |
