EXPLOSION PROOF ANTI-CORROSION

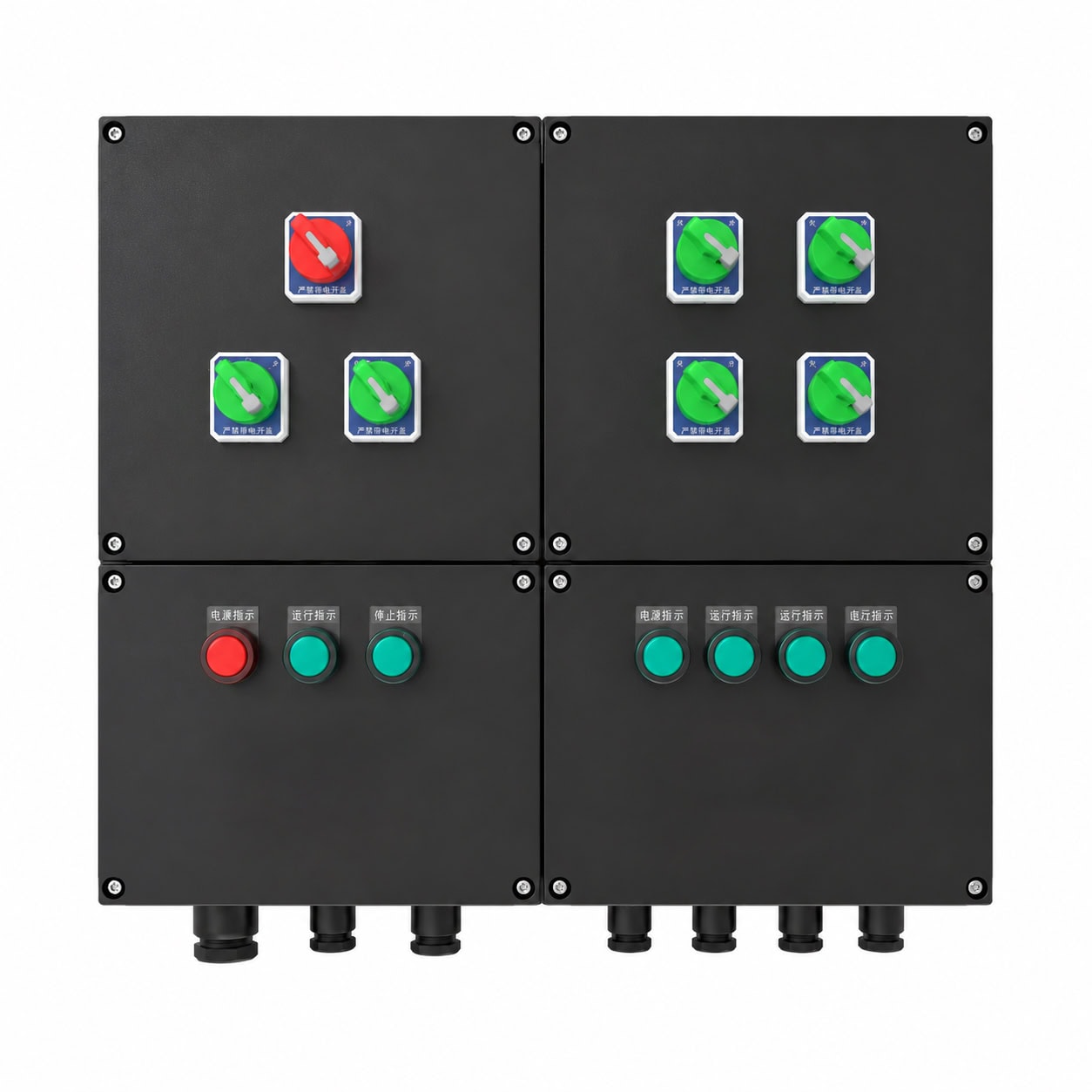

BX Series Explosion Proof Anti-Corrosion Distribution Panel
Ex db eb IIB/IIC T4/T6 Gb
Ex tb IIIC T130°C Db
IP66 · WF2
BX is the ExCtrl distribution panel for anti-corrosion configurations. It accepts AC 220V or 380V, supports up to 250A on the main circuit and up to 12 branch circuits. Confirm the gas group, temperature class and cable entry before you request a drawing.
- Rated voltage: AC 220V / 380V
- Main circuit current: ≤250A; branch circuit current: ≤150A
- Available in 4, 6, 8, 10 or 12 circuits
- Explosion protection marking: Ex db eb IIB/IIC T4/T6 Gb and Ex tb IIIC T130°C Db
- Ingress protection IP66 with anti-corrosion rating WF2
- G1/2-G3 cable entry threads for 6-55 mm cable diameters
- BX series coverage is stated in Chinese Explosion-Proof Certificate ZJEx25.2590; confirm the exact configuration.
Technical Specifications
The numbers that decide the BX panel fit
Use this matrix to align the panel with your voltage, circuit count, protection marking and cable entry.
| Parameter | Specification |
|---|---|
| Protection Marking (Gas) | Ex db eb IIB/IIC T4/T6 Gb |
| Protection Marking (Dust) | Ex tb IIIC T130°C Db |
| Rated Voltage | AC 220V / 380V |
| Main Circuit Current | ≤250A |
| Branch Circuit Current | ≤150A |
| Circuits | 4 / 6 / 8 / 10 / 12 |
| Ingress Protection | IP66 |
| Anti-Corrosion Rating | WF2 |
| Cable Entry Thread | G1/2-G3 |
| Applicable Cable Diameter | 6-55 mm |
| Certificate Scope | BX series · ZJEx25.2590 |
