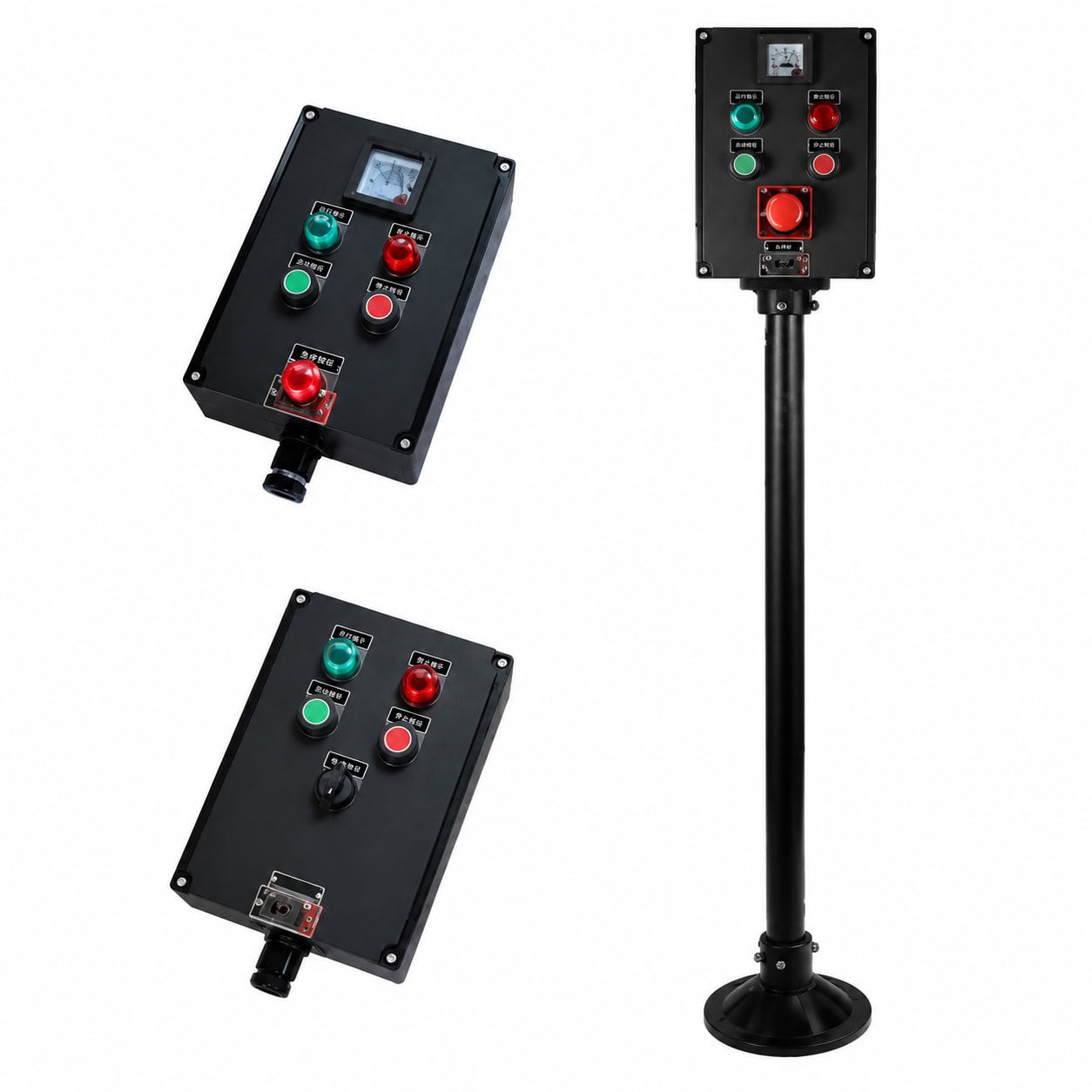

BZC8050 Series Explosion Proof Anti-Corrosion Control Station
Ex db eb IIC T6 Gb
Ex tb IIIC T80°C Db
IP66 · WF2
BZC8050 is the Explosion Proof Anti-Corrosion Control Station for AC 220V or 380V systems. The recorded configuration is rated at 16A, with a G1 entry for 11-18 mm cables. Confirm the station arrangement before you request a drawing.
- Rated voltage: AC 220V / 380V; rated current: 16A
- Explosion protection marking: Ex db eb IIC T6 Gb and Ex tb IIIC T80°C Db
- Ingress protection IP66 with anti-corrosion rating WF2
- G1 cable entry thread for 11-18 mm cable diameters
- Confirm the station arrangement and cable entry with your enquiry.
Technical Specifications
The numbers that decide the BZC8050 station fit
Use this matrix to align the control station with voltage, current, protection marking and cable entry.
| Parameter | Specification |
|---|---|
| Protection Marking (Gas) | Ex db eb IIC T6 Gb |
| Protection Marking (Dust) | Ex tb IIIC T80°C Db |
| Rated Voltage | AC 220V / 380V |
| Rated Current | 16A |
| Ingress Protection | IP66 |
| Anti-Corrosion Rating | WF2 |
| Cable Entry Thread | G1 |
| Applicable Cable Diameter | 11-18 mm |
