EXPLOSION PROOF ENCLOSURES

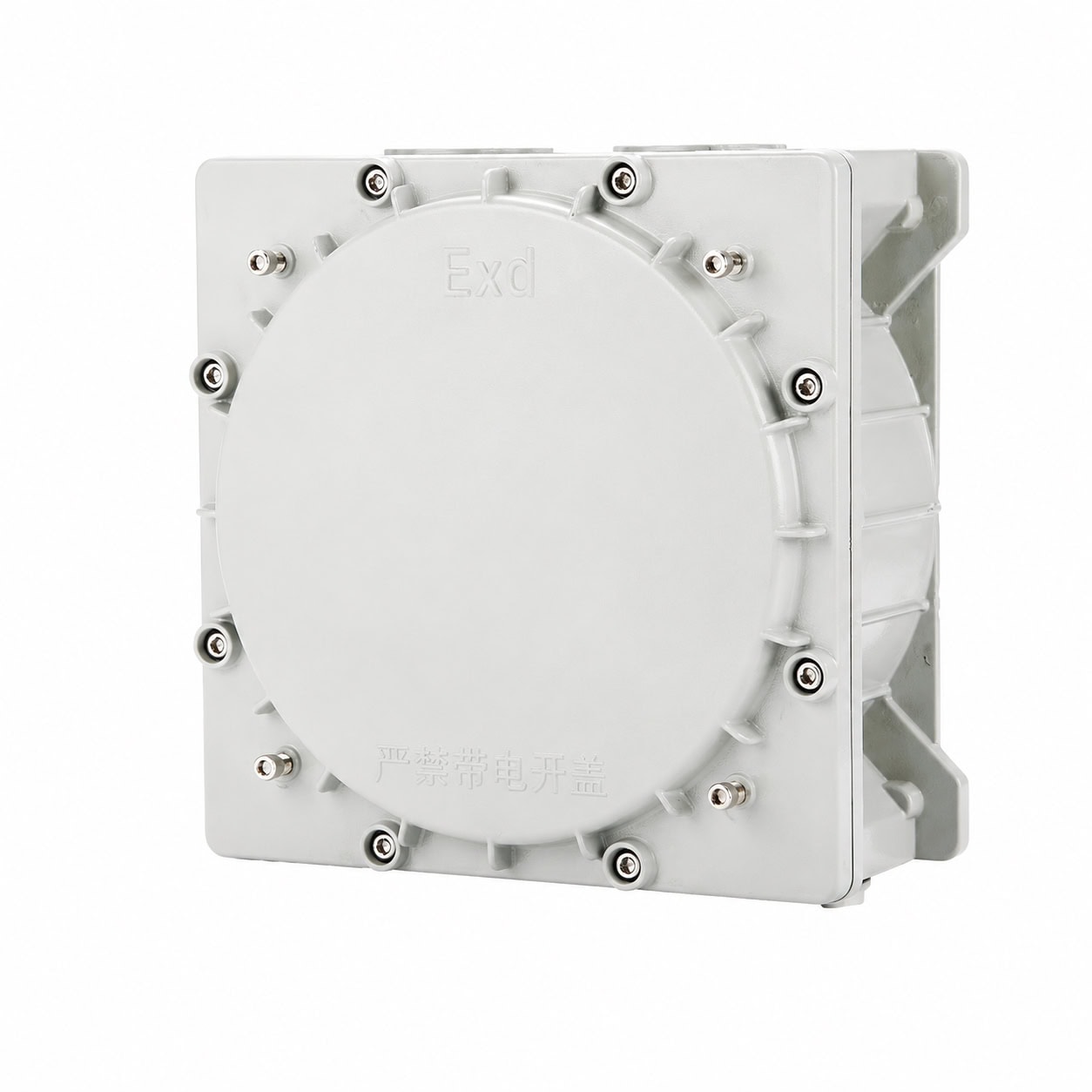

Flameproof Enclosure (IIC)
Flameproof (db) Series
IIC
This Flameproof Enclosure (IIC) is supplied as an empty shell for db assemblies. Standard sizes run from 210 x 210 x 150 mm to 400 x 400 x 210 mm, with wall thicknesses from 3.0 mm to 8.0 mm. Send the finished assembly layout with your inquiry.
- Protection form: Flameproof (db) series, IIC
- Standard size range: 210 x 210 x 150 mm to 400 x 400 x 210 mm
- Listed wall thicknesses: 3.0 mm, 3.5 mm, 4.0 mm, 6.0 mm and 8.0 mm
- All 8 available dimensions and their wall thickness options are listed below
- Empty enclosure for integration into the finished assembly
- Include required openings, mounting points and internal arrangement with your inquiry
Technical Specifications
The dimensions that decide the IIC enclosure fit
Start with a listed size and wall thickness, then send the finished assembly layout for review.
| Parameter | Specification |
|---|---|
| Protection Form | Flameproof (db) series · IIC |
| Product State | Empty enclosure |
| Standard Size Range | 210 x 210 x 150 mm to 400 x 400 x 210 mm |
| Wall Thickness | 3.0 mm / 3.5 mm / 4.0 mm / 6.0 mm / 8.0 mm |
Available Sizes
Dimensions are shown as width x height x depth. Wall thickness options are specific to each size.
| Size (W x H x D) | Wall Thickness |
|---|---|
| 210 x 210 x 150 mm | 3.0 mm |
| 250 x 250 x 130 mm | 3.5 mm |
| 250 x 250 x 150 mm | 3.5 mm |
| 300 x 300 x 150 mm | 3.5 mm / 6.0 mm / 8.0 mm |
| Size (W x H x D) | Wall Thickness |
|---|---|
| 300 x 300 x 170 mm | 3.5 mm / 6.0 mm / 8.0 mm |
| 300 x 300 x 140 mm | 4.0 mm |
| 400 x 400 x 150 mm | 4.0 mm / 8.0 mm |
| 400 x 400 x 210 mm | 4.0 mm / 8.0 mm |
