EXPLOSION PROOF FANS

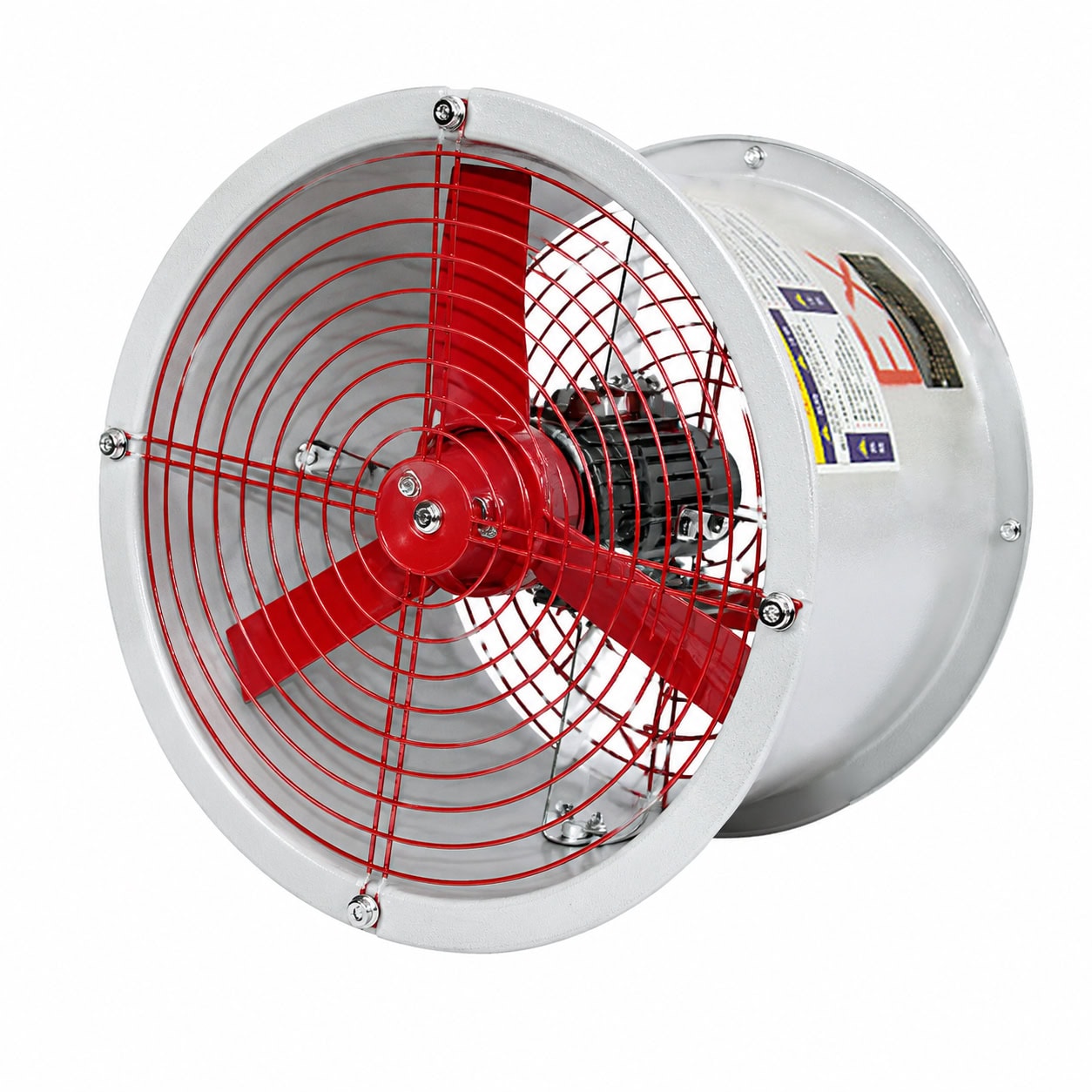

BAF Series Explosion Proof Axial Fan
Ex db IIC T4 Gb
Ex tb IIIC T130°C Dc
IP66 / WF1
The BAF series is an explosion proof axial fan with five listed impeller sizes from Ø200 to Ø600 mm. Select the voltage, diameter, motor power, speed and mounting code before requesting a quotation.
- Five listed impeller sizes: Ø200, Ø300, Ø400, Ø500 and Ø600 mm
- Motor power range from 0.09 to 0.55 kW, with 1450 or 2800 r/min rated speed
- AC220V and AC380V voltage options
- B wall-mounted, L post-mounted and G fixed mounting codes
- IP66 ingress protection and WF1 anti-corrosion grade
- G3/4 or M26 x 1.5 cable entry for Ø9-14 mm cable
Technical Specifications
BAF Explosion Proof Axial Fan Specifications
Confirm the required options below when sending your enquiry. Available combinations should be checked against the final quotation.
| Parameter | Specification |
|---|---|
| Model | BAF-AC220V/380V |
| Rated Voltage | AC220V / AC380V |
| Impeller Diameter | Ø200 / Ø300 / Ø400 / Ø500 / Ø600 mm |
| Motor Power | 0.09-0.55 kW |
| Rated Speed | 1450 / 2800 r/min |
| Explosion Protection Marking | Ex db IIC T4 Gb; Ex tb IIIC T130°C Dc |
| Ingress Protection | IP66 |
| Anti-Corrosion Rating | WF1 |
| Mounting Type | B wall-mounted / L post-mounted / G fixed |
| Cable Entry | G3/4 / M26 x 1.5 |
| Cable Diameter | Ø9-14 mm |
