EXPLOSION PROOF FANS

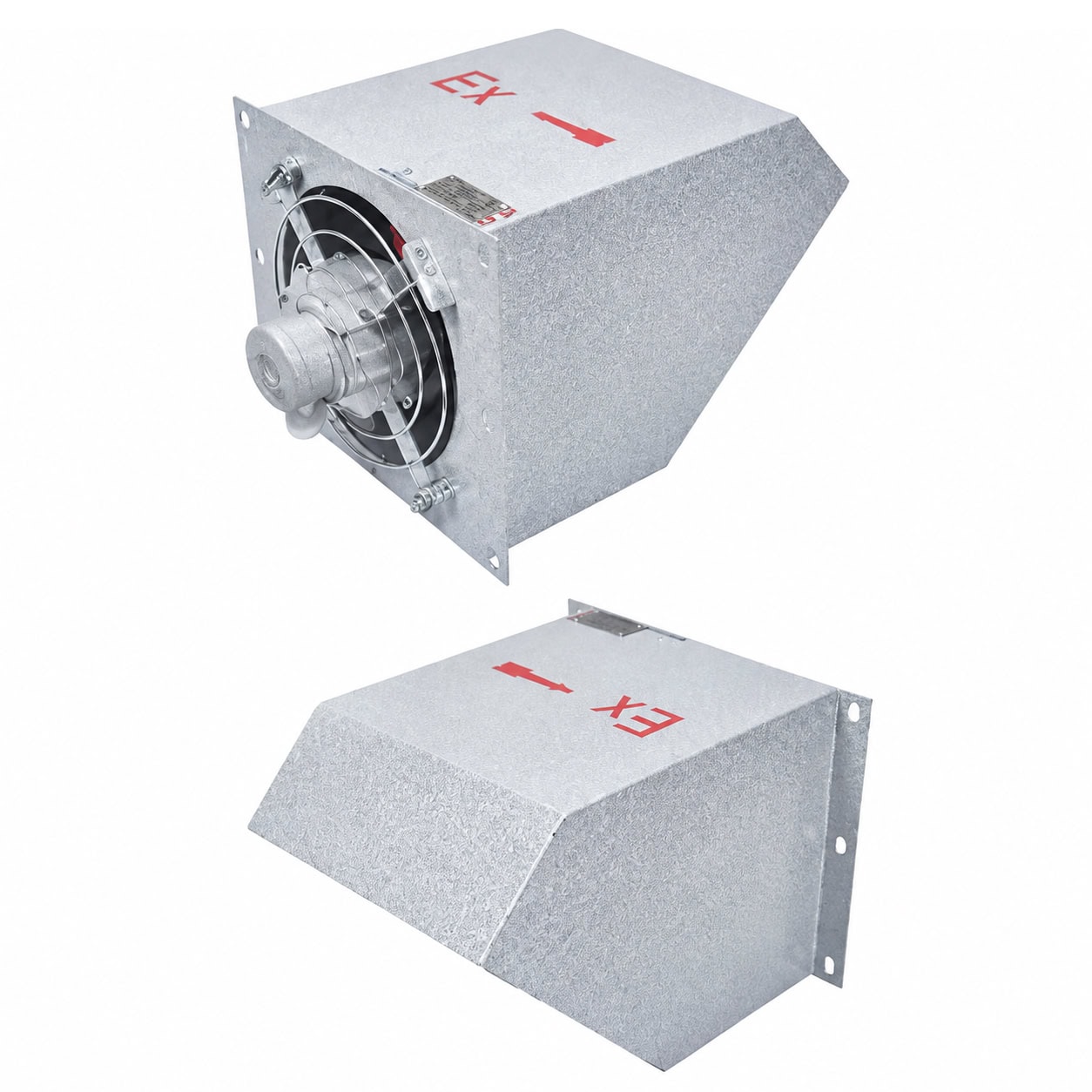

BDWEx Series Explosion Proof Wall Fan
Ex db IIC T4 Gb
Ex tb IIIC T130°C Dc
IP54 / WF1
The BDWEx series is an explosion proof wall fan with an impeller diameter range from Ø200 to Ø1120 mm. Motor ratings extend from 0.09 to 11 kW, with three listed speed options for project-specific selection.
- Listed impeller diameter range from Ø200 to Ø1120 mm
- Motor power range from 0.09 to 11 kW
- 960, 1450 and 2800 r/min rated speed options
- AC220V and AC380V voltage options
- IP54 ingress protection and WF1 anti-corrosion grade
- G3/4 or M26 x 1.5 cable entry for Ø9-14 mm cable
Technical Specifications
BDWEx Explosion Proof Wall Fan Specifications
Use the listed electrical and mechanical ranges to define the required BDWEx configuration for quotation.
| Parameter | Specification |
|---|---|
| Model | BDWEx-AC220V/380V |
| Rated Voltage | AC220V / AC380V |
| Impeller Diameter | Ø200-Ø1120 mm |
| Motor Power | 0.09-11 kW |
| Rated Speed | 960 / 1450 / 2800 r/min |
| Explosion Protection Marking | Ex db IIC T4 Gb; Ex tb IIIC T130°C Dc |
| Ingress Protection | IP54 |
| Anti-Corrosion Rating | WF1 |
| Cable Entry | G3/4 / M26 x 1.5 |
| Cable Diameter | Ø9-14 mm |
