EXPLOSION PROOF FANS

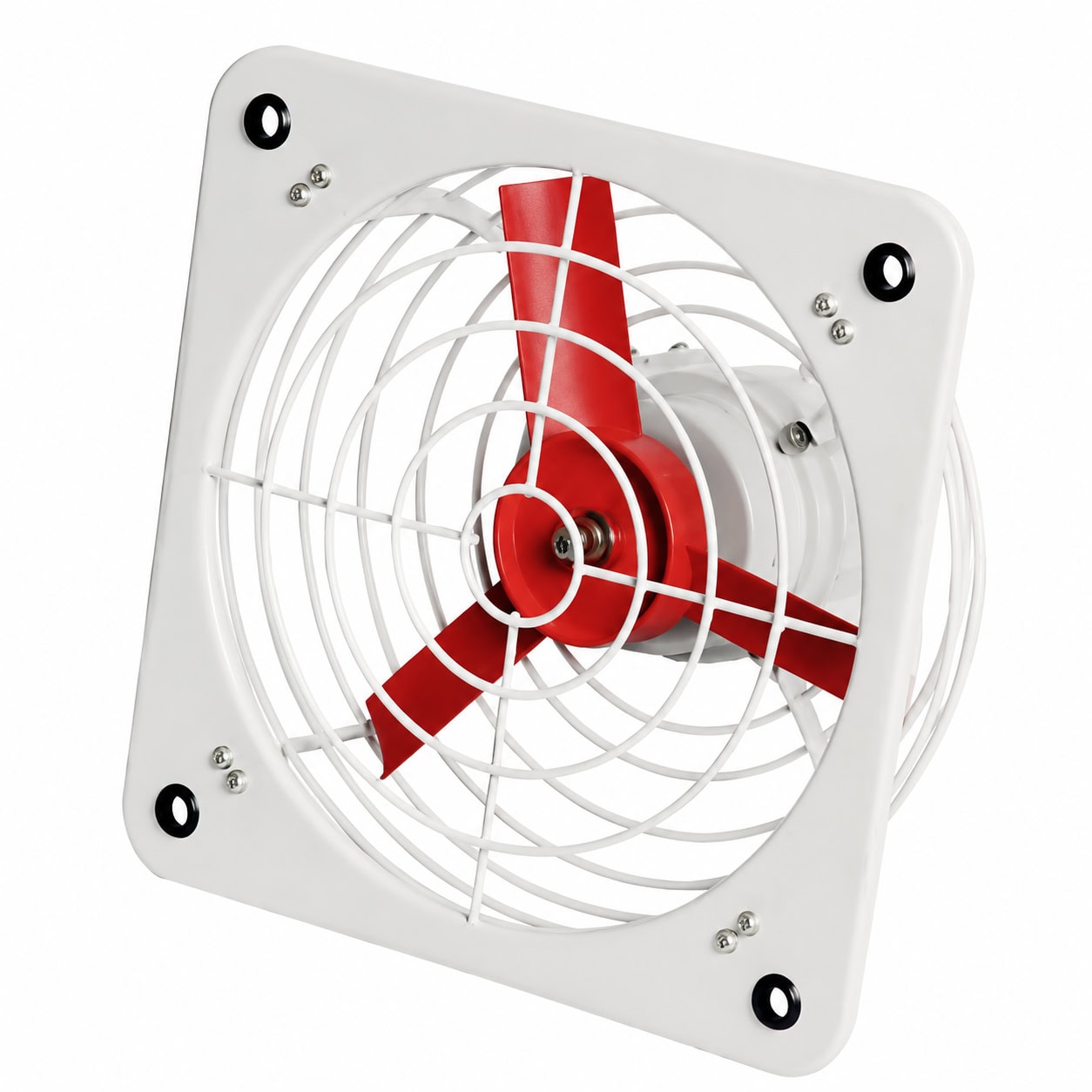

BFAG-BFS Series Explosion Proof Exhaust Fan
Ex db IIC T4 Gb
Ex tb IIIC T130°C Dc
IP54 / WF1
The BFAG-BFS series is an explosion proof exhaust fan covering Ø300 to Ø600 mm impeller diameters. The listed motor range is 0.25 to 0.75 kW at 1450 r/min for AC220V or AC380V configurations.
- Listed impeller diameter range from Ø300 to Ø600 mm
- Motor power range from 0.25 to 0.75 kW
- 1450 r/min rated speed
- AC220V and AC380V voltage options
- IP54 ingress protection and WF1 anti-corrosion grade
- G3/4 or M26 x 1.5 cable entry for Ø9-14 mm cable
Technical Specifications
BFAG-BFS Explosion Proof Exhaust Fan Specifications
Confirm the diameter, motor rating, voltage and cable entry required for the quoted configuration.
| Parameter | Specification |
|---|---|
| Model | BFAG-BFS-AC220V/380V |
| Rated Voltage | AC220V / AC380V |
| Impeller Diameter | Ø300-Ø600 mm |
| Motor Power | 0.25-0.75 kW |
| Rated Speed | 1450 r/min |
| Explosion Protection Marking | Ex db IIC T4 Gb; Ex tb IIIC T130°C Dc |
| Ingress Protection | IP54 |
| Anti-Corrosion Rating | WF1 |
| Cable Entry | G3/4 / M26 x 1.5 |
| Cable Diameter | Ø9-14 mm |
