EXPLOSION PROOF FANS

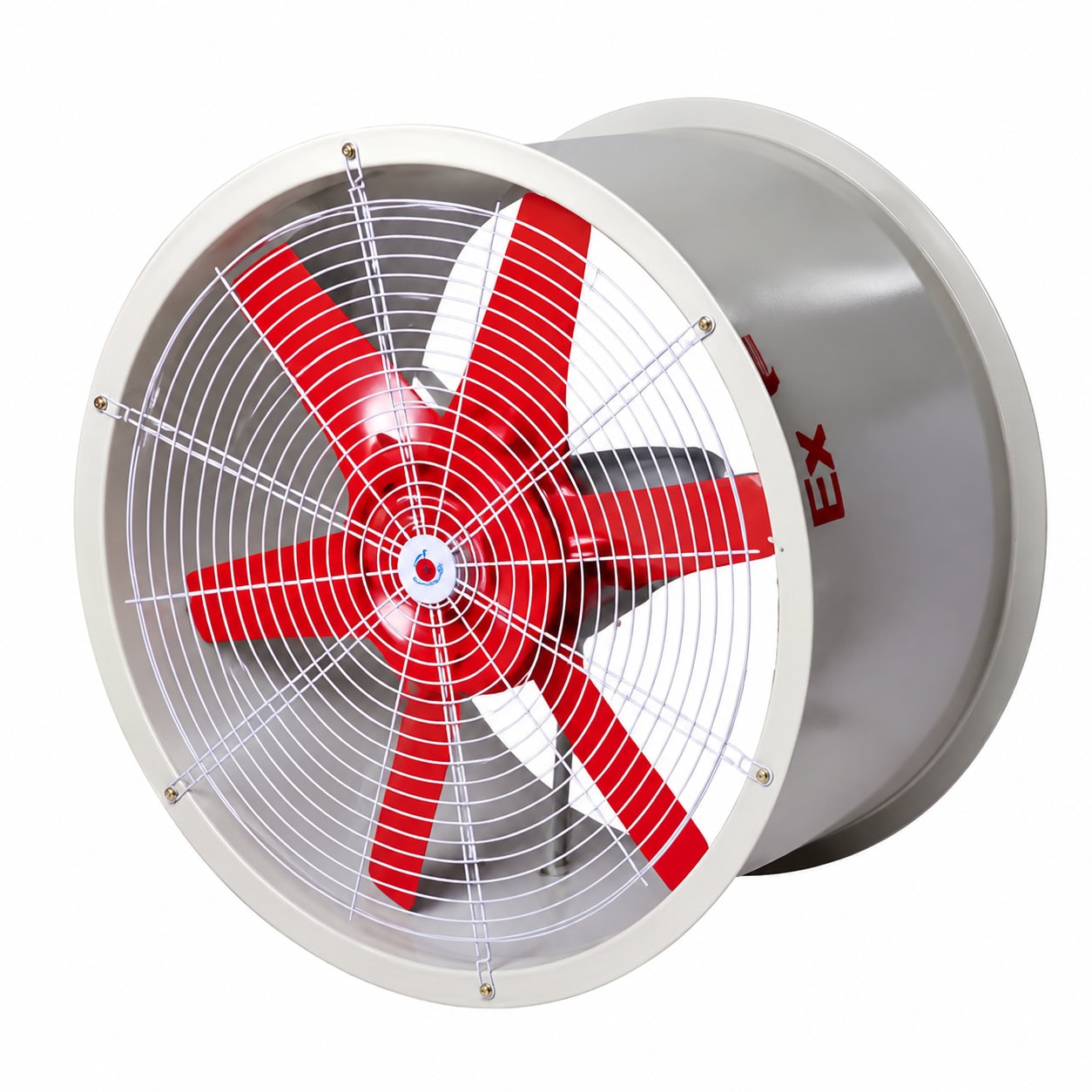

BT35 Series Explosion Proof Axial Fan
Ex db IIC T4 Gb
Ex tb IIIC T130°C Dc
IP54 / WF1
The BT35 series is an explosion proof axial fan with an impeller diameter range from Ø200 to Ø1120 mm and motor ratings from 0.09 to 11 kW. Select the required speed, voltage and mounting code together with the diameter.
- Listed impeller diameter range from Ø200 to Ø1120 mm
- Motor power range from 0.09 to 11 kW
- 960, 1450 and 2800 r/min rated speed options
- AC220V and AC380V voltage options
- B wall-mounted, L post-mounted and G fixed mounting codes
- IP54 ingress protection, WF1 anti-corrosion grade and Ø9-14 mm cable range
Technical Specifications
BT35 Explosion Proof Axial Fan Specifications
Confirm the diameter, motor rating, speed and mounting code required for the quoted configuration.
| Parameter | Specification |
|---|---|
| Model | BT35-AC220V/380V |
| Rated Voltage | AC220V / AC380V |
| Impeller Diameter | Ø200-Ø1120 mm |
| Motor Power | 0.09-11 kW |
| Rated Speed | 960 / 1450 / 2800 r/min |
| Explosion Protection Marking | Ex db IIC T4 Gb; Ex tb IIIC T130°C Dc |
| Ingress Protection | IP54 |
| Anti-Corrosion Rating | WF1 |
| Mounting Type | B wall-mounted / L post-mounted / G fixed |
| Cable Entry | G3/4 / M26 x 1.5 |
| Cable Diameter | Ø9-14 mm |
