JUNCTION BOXES / FLAMEPROOF

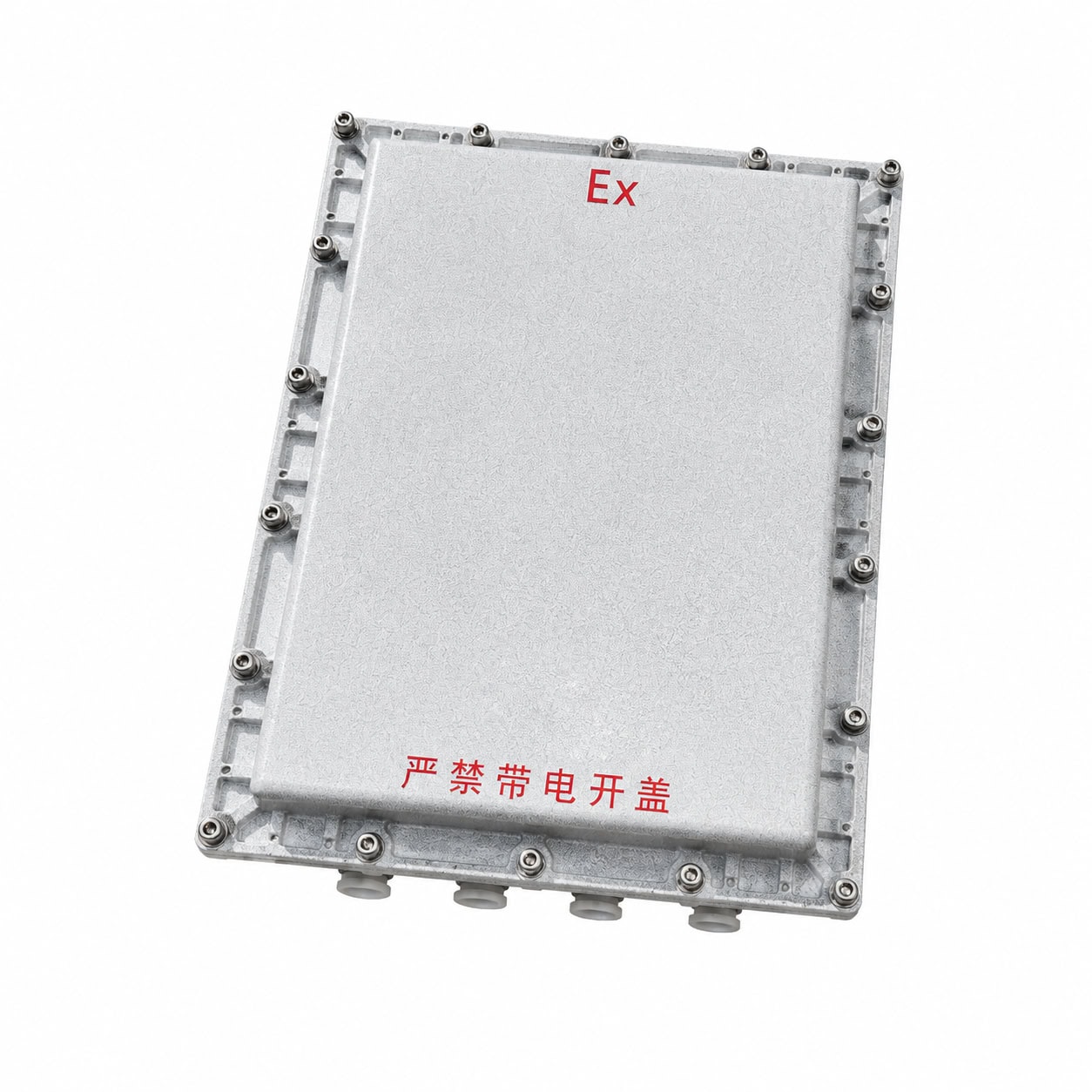

BJX Aluminium Alloy Flameproof Junction Box (IIB, 400A)
Ex db IIB T6 Gb
Ex tb IIIC T80°C Dc
IP66 / WF1
Aluminium Alloy
This ExCtrl BJX Aluminium Alloy Flameproof Junction Box is the IIB configuration rated up to 400A at AC220V/380V. The entry range covers G1/2-G4 and M16-M110 x 1.5. Cable diameter is not stated for this configuration, so confirm it before quotation.
- Aluminium alloy enclosure with Flameproof (db) IIB configuration
- AC220V / AC380V rated voltage and rated current up to 400A
- Ex db IIB T6 Gb; Ex tb IIIC T80°C Dc
- IP66 ingress protection and WF1 anti-corrosion grade
- G1/2-G4 or M16-M110 x 1.5 cable entry range
- Cable diameter must be confirmed for the selected entry
Technical Specifications
BJX Aluminium Alloy Flameproof Junction Box: IIB 400A Details
Rated current and entry range are stated below. Cable diameter remains a quotation-stage check for this model.
| Parameter | Specification |
|---|---|
| Model | BJX-AC220V/380V-IIB-DB-≤400A |
| Protection Method | Flameproof (db) |
| Enclosure Material | Aluminium Alloy |
| Rated Voltage | AC220V / AC380V |
| Rated Current | ≤400A |
| Explosion Protection Marking | Ex db IIB T6 Gb; Ex tb IIIC T80°C Dc |
| Ingress Protection | IP66 |
| Anti-Corrosion Rating | WF1 |
| Cable Entry | G1/2-G4 / M16-M110 x 1.5 |
| Cable Diameter | Confirm for the selected entry |
