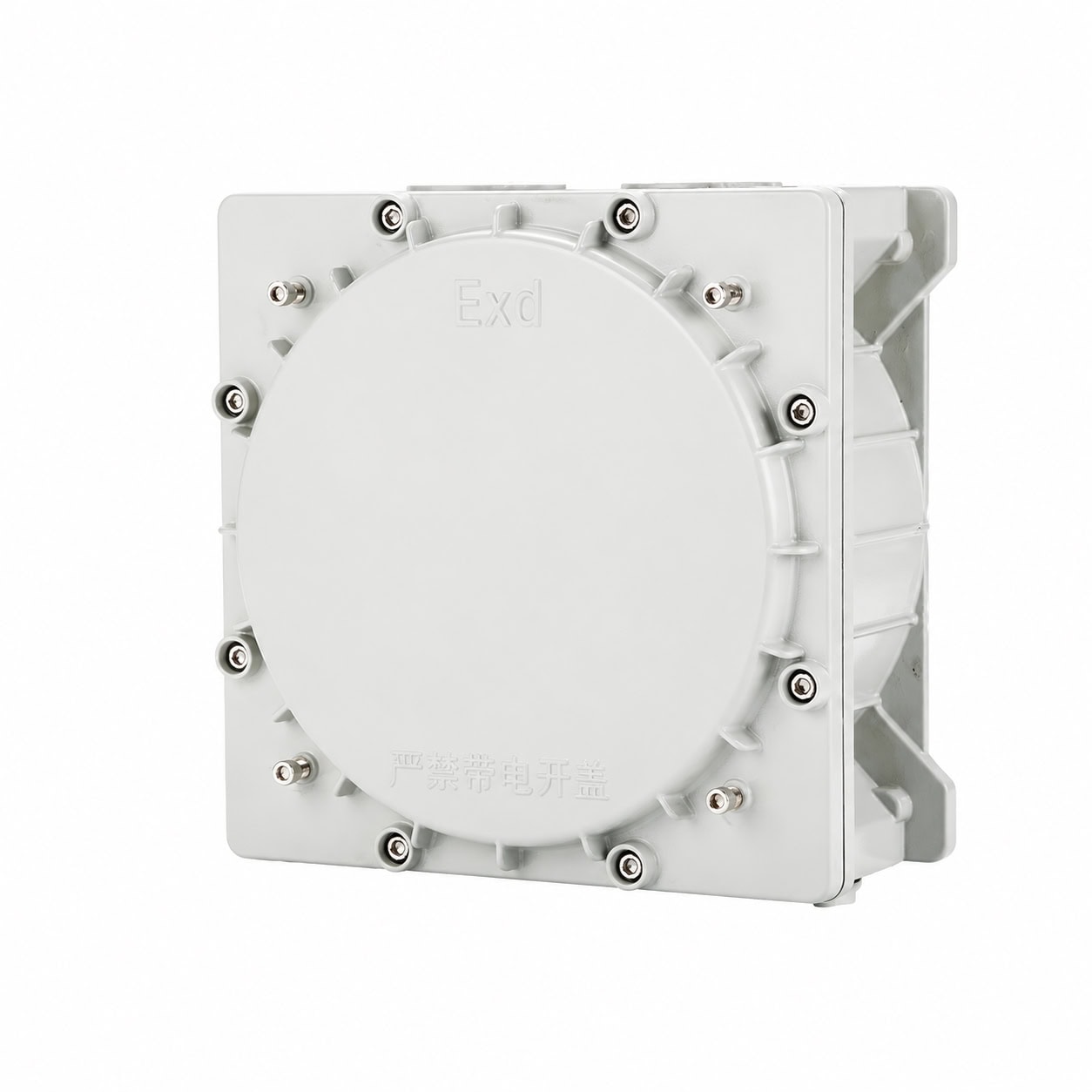

BJX Aluminium Alloy Flameproof Junction Box (IIC, 200A)
Ex db IIC T6 Gb
Ex tb IIIC T80°C Dc
IP66 / WF1
Aluminium Alloy
The ExCtrl BJX Aluminium Alloy Flameproof Junction Box in its 200A IIC configuration uses NPT1/2-NPT1-1/2 or M16-M75 x 1.5 entries rather than the wider G and metric range listed on other BJX models. That entry difference matters. Confirm it together with the voltage and cable diameter before quotation.
- Aluminium alloy enclosure with Flameproof (db) IIC configuration
- AC220V / AC380V rated voltage and rated current up to 200A
- Ex db IIC T6 Gb; Ex tb IIIC T80°C Dc
- IP66 ingress protection and WF1 anti-corrosion grade
- NPT1/2-NPT1-1/2 or M16-M75 x 1.5 cable entry range
- Listed cable diameter range from Ø6.5 to Ø80 mm
Technical Specifications
BJX Aluminium Alloy Flameproof Junction Box: IIC 200A Details
Check the NPT or metric entry range carefully. It differs from the 630A IIC configuration.
| Parameter | Specification |
|---|---|
| Model | BJX-AC220V/380V-IIC-DB-≤200A |
| Protection Method | Flameproof (db) |
| Enclosure Material | Aluminium Alloy |
| Rated Voltage | AC220V / AC380V |
| Rated Current | ≤200A |
| Explosion Protection Marking | Ex db IIC T6 Gb; Ex tb IIIC T80°C Dc |
| Ingress Protection | IP66 |
| Anti-Corrosion Rating | WF1 |
| Cable Entry | NPT1/2-NPT1-1/2 / M16-M75 x 1.5 |
| Cable Diameter | Ø6.5-80 mm |
