JUNCTION BOXES / STAINLESS STEEL / FLAMEPROOF

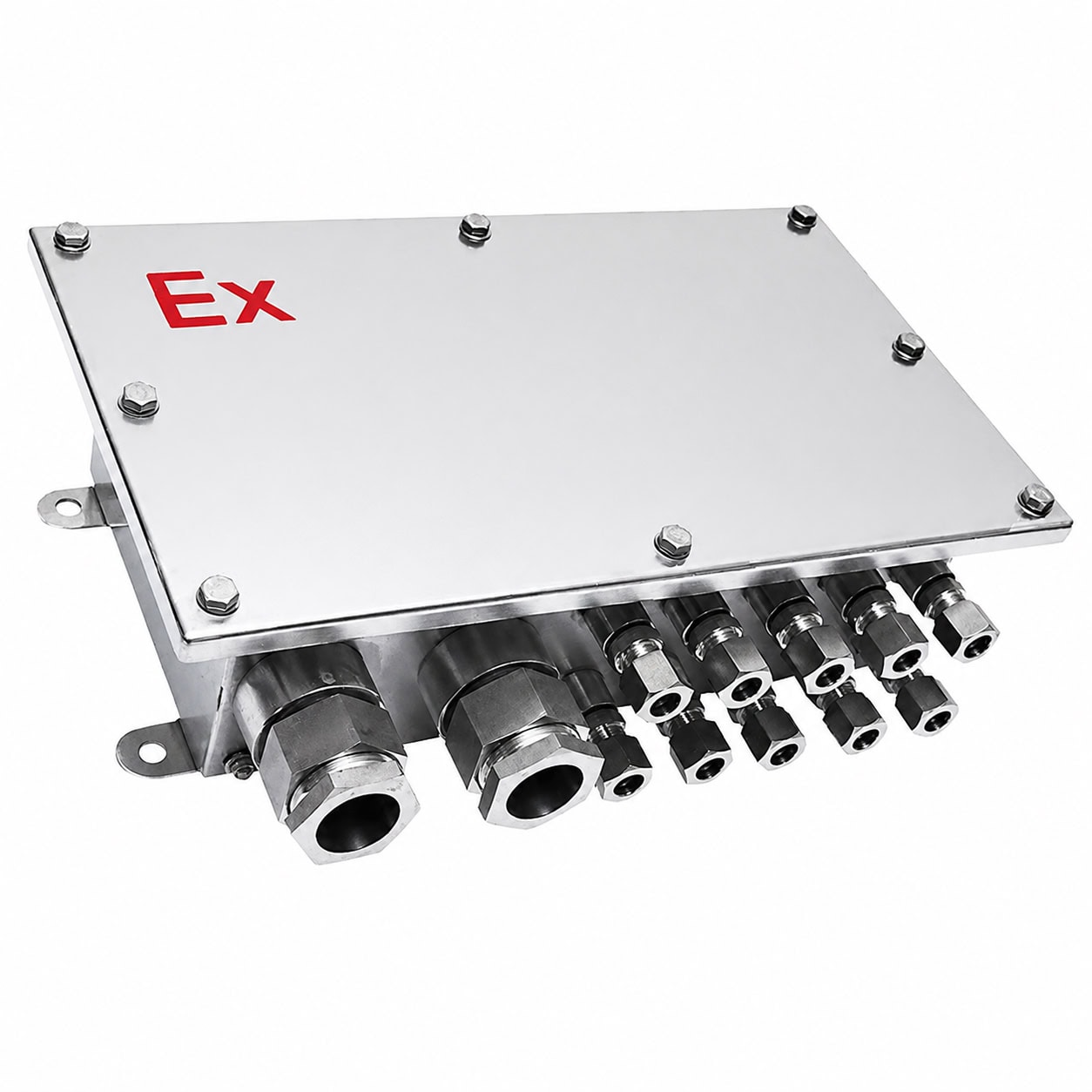

BJX Stainless Steel Flameproof Junction Box (IIB, 630A)
Ex db IIB T6 Gb
Ex tb IIIC T80°C Dc
IP66 / WF1
Stainless Steel
Rated up to 630A, this ExCtrl BJX Stainless Steel Flameproof Junction Box carries the IIB gas marking and IIIC dust marking shown below. G and metric entries are listed together with a Ø6.5-80 mm cable diameter range.
- Stainless steel enclosure with Flameproof (db) IIB configuration
- AC220V / AC380V rated voltage and rated current up to 630A
- Ex db IIB T6 Gb; Ex tb IIIC T80°C Dc
- IP66 ingress protection and WF1 anti-corrosion grade
- G1/2-G4 or M16-M110 x 1.5 cable entry range
- Listed cable diameter range from Ø6.5 to Ø80 mm
Technical Specifications
BJX Stainless Steel Flameproof Junction Box: IIB 630A Details
The 630A rating does not replace the entry check. Confirm both entry thread and cable diameter in the enquiry.
| Parameter | Specification |
|---|---|
| Model | BJX-AC220V/380V-IIB-DB-≤630A |
| Protection Method | Flameproof (db) |
| Enclosure Material | Stainless Steel |
| Rated Voltage | AC220V / AC380V |
| Rated Current | ≤630A |
| Explosion Protection Marking | Ex db IIB T6 Gb; Ex tb IIIC T80°C Dc |
| Ingress Protection | IP66 |
| Anti-Corrosion Rating | WF1 |
| Cable Entry | G1/2-G4 / M16-M110 x 1.5 |
| Cable Diameter | Ø6.5-80 mm |
