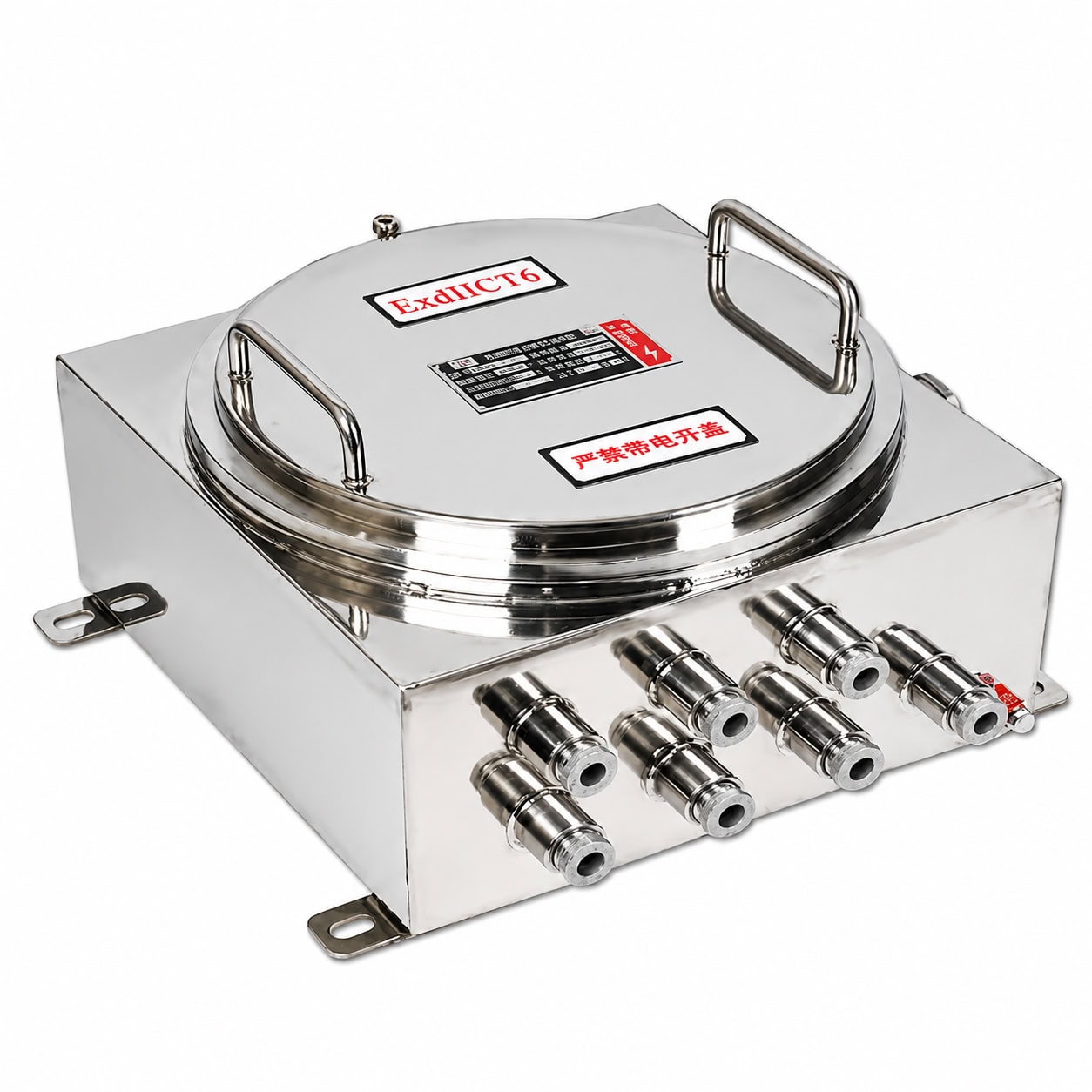

BJX Stainless Steel Flameproof Junction Box (IIC, 630A)
Ex db IIC T6 Gb
Ex tb IIIC T80°C Dc
IP66 / WF1
Stainless Steel
This is the 630A IIC configuration in the ExCtrl BJX Stainless Steel Flameproof Junction Box range. It combines G1/2-G4 or M16-M110 x 1.5 entries with a listed Ø6.5-80 mm cable diameter range.
- Stainless steel enclosure with Flameproof (db) IIC configuration
- AC220V / AC380V rated voltage and rated current up to 630A
- Ex db IIC T6 Gb; Ex tb IIIC T80°C Dc
- IP66 ingress protection and WF1 anti-corrosion grade
- G1/2-G4 or M16-M110 x 1.5 cable entry range
- Listed cable diameter range from Ø6.5 to Ø80 mm
Technical Specifications
BJX Stainless Steel Flameproof Junction Box: IIC 630A Details
Use the complete model, current rating and entry range below when requesting this configuration.
| Parameter | Specification |
|---|---|
| Model | BJX-AC220V/380V-IIC-DB-≤630A |
| Protection Method | Flameproof (db) |
| Enclosure Material | Stainless Steel |
| Rated Voltage | AC220V / AC380V |
| Rated Current | ≤630A |
| Explosion Protection Marking | Ex db IIC T6 Gb; Ex tb IIIC T80°C Dc |
| Ingress Protection | IP66 |
| Anti-Corrosion Rating | WF1 |
| Cable Entry | G1/2-G4 / M16-M110 x 1.5 |
| Cable Diameter | Ø6.5-80 mm |
