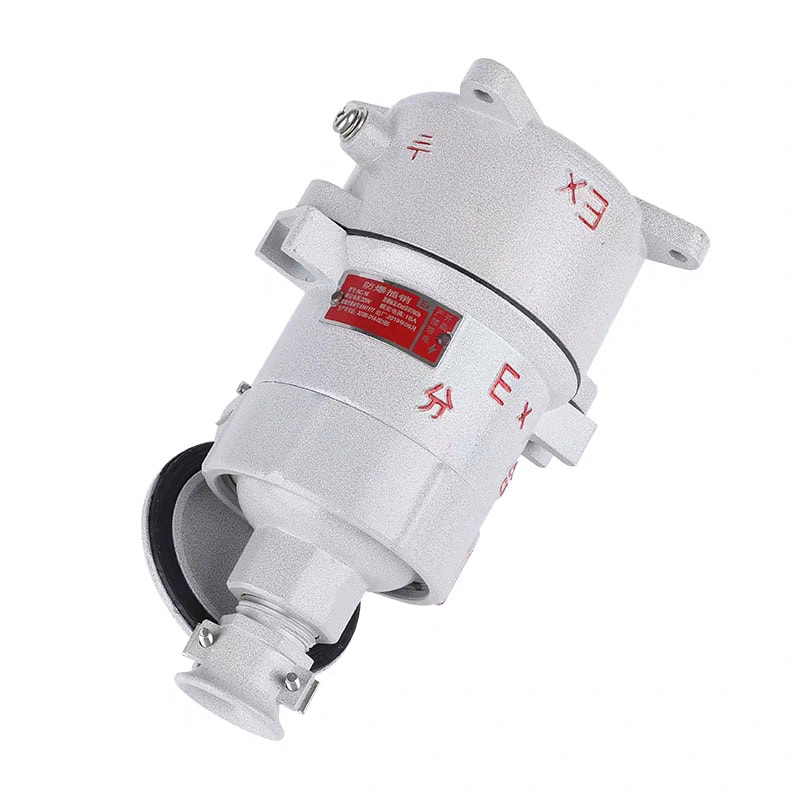

AC Series Explosion Proof Plug & Socket
AC Series
Ex db eb IIC T5 Gb
The ExCtrl AC Series Explosion Proof Plug & Socket is available in 16A and 32A configurations for AC220V/380V circuits. Its stated markings are Ex db eb IIC T5 Gb and Ex tb IIIC T95°C Db, with IP65 ingress protection and WF1. Choose the pole arrangement, entry thread and cable range before quotation.
- Rated current options: 16A / 32A
- Rated voltage: AC220V / AC380V
- Ex db eb IIC T5 Gb; Ex tb IIIC T95°C Db
- IP65 ingress protection with WF1 anti-corrosion rating
- Pole arrangements: 1P+N+PE / 3P+PE
- G3/4, G1 1/4 or NPT 1/2 entries for Ø10-25 mm cable ranges
Technical Specifications
AC Explosion Proof Plug & Socket: 16A and 32A Details
Match the current, pole arrangement, entry thread and cable diameter to the project drawing.
| Parameter | Specification |
|---|---|
| Model | AC-AC220V/380V-IIC |
| Rated Voltage | AC220V / AC380V |
| Rated Current | 16A / 32A |
| Explosion Protection Marking | Ex db eb IIC T5 Gb; Ex tb IIIC T95°C Db |
| Ingress Protection | IP65 |
| Anti-Corrosion Rating | WF1 |
| Pole Arrangement | 1P+N+PE / 3P+PE |
| Cable Entry | G3/4 / G1 1/4 / NPT 1/2 |
| Cable Diameter | Ø10-14 mm / Ø14-25 mm |
