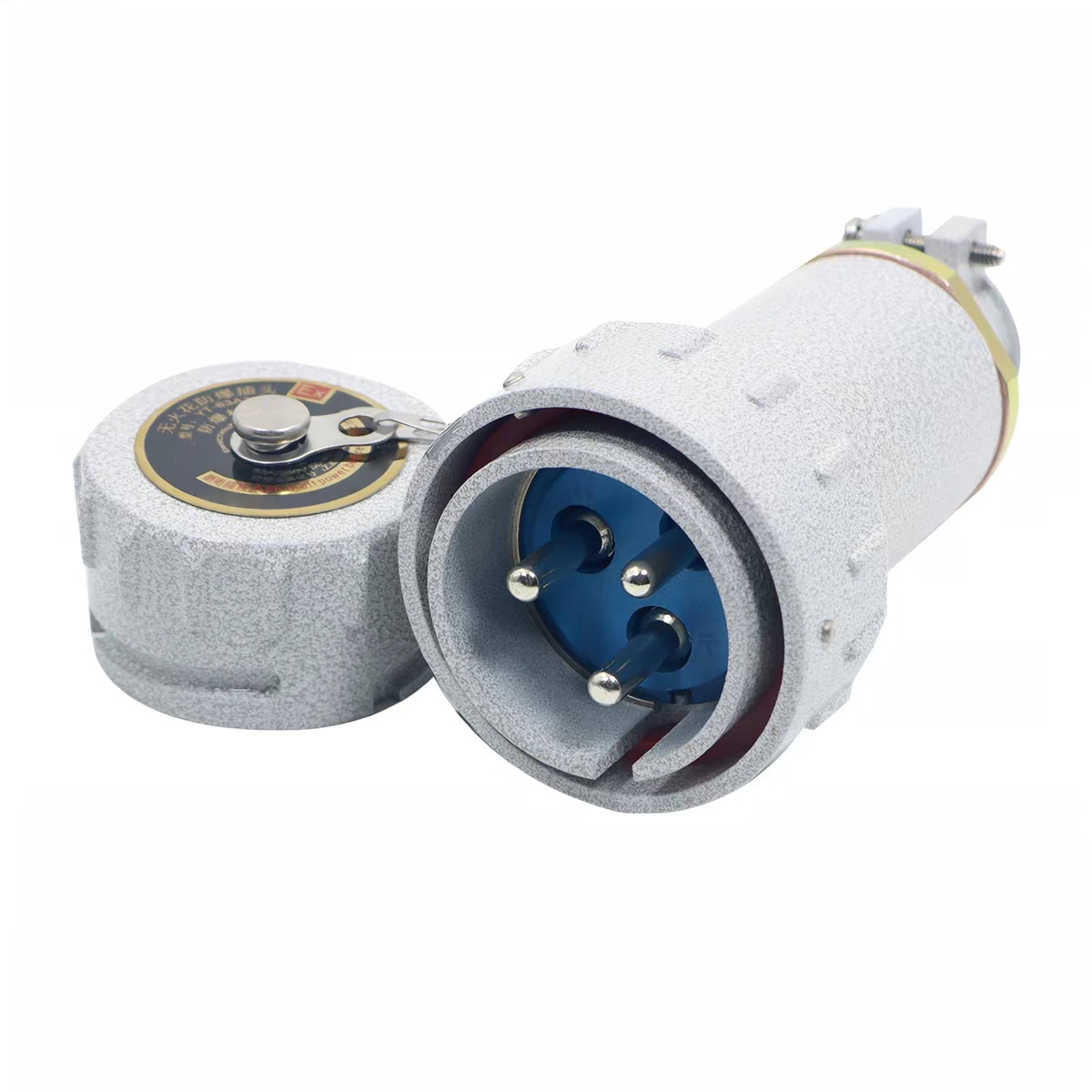

YT-GZ Series Non-Sparking Plug & Socket
YT-GZ Series
Ex ec IIC T4 Gb
The ExCtrl YT-GZ Series Non-Sparking Plug & Socket covers seven current ratings from 15A to 300A for AC220V/380V circuits. Its stated markings are Ex ec IIC T4 Gb and Ex tb IIIC T130°C Dc, with IP66 ingress protection and WF1. Select the pole arrangement, G entry and cable diameter before quotation.
- Rated current options: 15A / 25A / 60A / 100A / 150A / 200A / 300A
- Rated voltage: AC220V / AC380V
- Ex ec IIC T4 Gb; Ex tb IIIC T130°C Dc
- IP66 ingress protection with WF1 anti-corrosion rating
- Pole arrangements: 1P+N+PE / 3P+N+PE
- G1/2-G3 entries for Ø6-55 mm cables
Technical Specifications
YT-GZ Non-Sparking Plug & Socket: 15A to 300A Details
Use the current, pole arrangement, entry thread and cable diameter to define the configuration.
| Parameter | Specification |
|---|---|
| Model | YT-GZ-AC220V/380V-IIC |
| Rated Voltage | AC220V / AC380V |
| Rated Current | 15A / 25A / 60A / 100A / 150A / 200A / 300A |
| Explosion Protection Marking | Ex ec IIC T4 Gb; Ex tb IIIC T130°C Dc |
| Ingress Protection | IP66 |
| Anti-Corrosion Rating | WF1 |
| Pole Arrangement | 1P+N+PE / 3P+N+PE |
| Cable Entry | G1/2-G3 |
| Cable Diameter | Ø6-55 mm |
